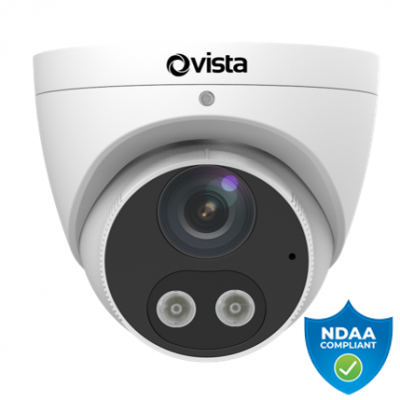

Vista VIP-T8MP40IRWLM 5MP 4.0mm IR&LED NDAA Complient IP Turret Camera

Catalogue No:
VIP-T8MP40IRWLM
£183.45
(Exc. 20% VAT)
(£220.14 Inc. VAT)
+
Vista
Information

Vista VIP-T8MP40IRWLM 5MP 4.0mm IR&LED NDAA Complient IP Turret Camera

Vista’s VIP series of IP cameras are fully NDAA compliant, allowing you peace of mind in offering one, consistent range that satisfies requirements across both private business and public sector projects.

Key Features

  • NDAA compliant -
    • NOVATEK chipset
  • 5/8MP fixed
  • 2.8mm/4.0mm turrets
  • Low light sensitive
  • 30m IR illumination
  • IP67 ingress protection  H.264/H.265 triple streaming
  • ONVIF compliant
  • ONVIF Profile S, G and T
  • Storage - microSD card  up to 256GB
  • Corridor mode
  • Internal mic
  • Internal speaker (uploadable  audio file) and white LED  illumination (10m) deterrent
  • Analytics including: cross line  detection, intrusion detection,  enter area detection, leave  area detection, face detection

The VIP fixed focal length turret cameras are easy to adjust and versatile, making them a great choice for small to medium environments. Producing wide angle imagery in 5 or 8MP image resolution with no IR bounce during night-time mode. IP67 rated against water and dust.

Delivering up to 3 streams in multiple formats inc. H.264, allowing you to optimise the quality of the video based on application. The latest H.265 technology reduces the levels of bandwidth and storage required. Low light technology provides IR illumination up to 30m.

Other features include Edge storage via MicroSD card slot that can take cards up to 256gb, PoE and an internal microphone.

Accompanying the VIP series of cameras is the VIP series of IP NVR recorders – also NDAA compliant.

This turret has 3 modes

  • IR Mode – where only IR is used;
  • Dual light Mode – Once IR is triggered WLED & Audio are activated;
  • White LED Mode – where only White LED is used.
Specifications

1/2.7” 5MP, CMOS

1/2.8” 8MP, CMOS

Colour: 0.002 Lux@F1.6

Colour: 0.0025 Lux@F1.6

120dB WDR

1/100000s~1s

Day/Night/Auto/manual IR Cut filter

>56dB

2.8mm fixed

4.0mm fixed

2.8mm fixed

4.0mm fixed

Auto

F1.6 | Fixed

Up to 30m | 850nm

Up to 10m | visible range

2880 × 1620

3840 × 2160

5MP (2880 × 1620), Max 30fps; 4MP (2560 × 1440), Max 30fps; 3MP (2304 × 1296), Max 30fps;  1080P (1920 × 1080), Max 30fps (8MP camera only) (3840 × 2160), Max 20fps;)

720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps;

640 × 360, Max 30fps (8MP Camera only) 1080P (1920 × 1080), Max 30fps;  D1 (720 × 576), Max 30fps; 2CIF(704 × 288), Max 30fps; CIF (352 × 288), Max 30fps)

D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps;  CIF (352 × 288), Max 30fps;

H.265, H.264, MJPEG

4 masks | 8 ROI

1 × RJ45 10M/100M

Internal mic and speaker only

Profile S, G and T

NAS, ANR

Plug-in required IE 10 and above. Chrome 45, Firefox 52 and Edge 79 min.

Strong password, HTTPS, digest authentication for RTSP, TLS 1.2, WSSE and digest  authentication for ONVIF

IPv4/6, IGMP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,  SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH

Yes | Yes

G.711

8KHz | 64Kbps

Cross line, Intrusion, Enter and leave area detection, People counting and Face detection

Datasheet
Product Attributes
Catalogue No
VIP-T8MP40IRWLM
Brand
Warranty
3 Year
Lens supplied
4.0mm
Resolution
5MP
CCD Type
1/2.7” 5MP, CMOS
Compression
H.265, H.264, MJPEG
