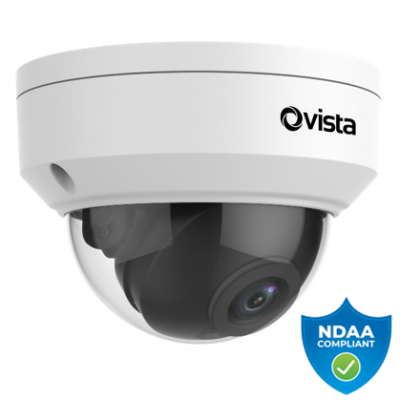

Vista VIP-D2MP28IRVRAUAL 2MP 2.8MM NDAA Complient IP Dome Camera

Vista VIP-D2MP28IRVRAUAL 2MP 2.8MM NDAA Complient IP Dome Camera
Catalogue No:
VIP-D2MP28IRVRAUAL
£126.07
(Exc. 20% VAT)
(£151.28 Inc. VAT)
–
+
Trustpilot

Vista
Information

Vista VIP-D2MP28IRVRAUAL 2MP 2.8MM NDAA Complient IP Dome Camera

Vista’s VIP series of IP cameras are fully NDAA compliant, allowing you peace of mind in offering one, consistent range that satisfies requirements across both private business and public sector projects.

Key Features

  • NDAA compliant -
    • NOVATEK chipset
  • 2, 5 and 8MP varifocal domes Low light sensitive
  • IR up to 40m
  • Motorised lens
  • IK10 vandal resistant and  IP67 ingress protection
  • H.264/H.265 triple streaming
  • ONVIF compliant
  • ONVIF Profile S, G and T
  • Storage - microSD card  up to 256GB
  • Corridor mode
  • Internal mic
  • Analytics including:
    • cross line, intrusion, enter and  leave area detection*

The VIP fixed focal length dome cameras offer a minimal and subtle design, making them the ideal choice for small to medium environments where a lowkey, discreet profile is required. They offer detailed 2 or 5MP image resolution in robust, IK10 vandal resistant housing and are IP67 rated against water and dust. The cameras can deliver up to 3 streams in multiple formats inc. H.264, allowing you to optimise the quality of the video based on application. The latest H.265 technology reduces the levels of bandwidth and storage required. Low light technology provides IR illumination up to 30m.

Other features include Edge storage via MicroSD card slot that can take cards up to 256gb data, PoE and an internal microphone.

Accompanying the VIP series of cameras is the VIP series of IP NVR recorders – also NDAA compliant.

Specifications

1/2.8” 2MP CMOS

1/2.7" 5MP CMOS

Colour: 0.001 lux F1.6

Colour: 0.002 lux F1.6

120dB WDR

1/100000s~1s

Day/Night/Auto/manual IR Cut filter

>52dB

>56dB

2.8mm fixed

Auto

F1.6

Fixed

Up to 30m | 850nm

1920 × 1080

2880 × 1620

2MP (1920 × 1080), Max 30fps;

720P (1280 × 720), Max 30fps;

5MP (2880 × 1620), Max 30fps;

4MP (2560 × 1440), Max 30fps;

3MP (2304 × 1296), Max 30fps;

1080P (1920 × 1080), Max 30fps

720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps

D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps;  CIF (352 × 288), Max 30fps

H.265, H.264, MJPEG

4 masks | 8 ROI

1 × RJ45 10M/100M Ethernet Port

1/1 | 1/1

Profile S, G and T

NAS, ANR

Plug-in required IE 10, Chrome 45, Firefox 52 and Edge 79 minimum

Strong password, HTTPS, digest authentication for RTSP, TLS 1.2, WSSE and digest  authentication for ONVIF

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP,  FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH

n/a

G.711

8KHz | 64Kbps

Cross Line, Intrusion, Enter & Leave Area detection, People Counting*

MicroSD, up to 256GB

Motion, Tamper and Audio detection

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

IP67/IK10

DC 12V/1A, PoE (IEEE 802.3af)

5W

4.5W

6KV

4KV

Φ108.7 x 81.1mm (Ø4.3” × 3.2”) | 0.42kg

Yes, Novatek chipset
Datasheet
Product Attributes
Catalogue No
VIP-D2MP28IRVRAUAL
Brand
Vista
Warranty
3 Year
Lens supplied
2.8mm fixed
Resolution
2MP
CCD Type
1/2.8” 2MP CMOS
Compression
H.265, H.264, MJPEG
