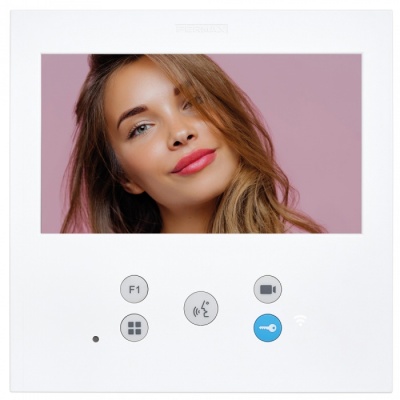

Fermax 9469 DUOX plus VEO-XL wifi 7" monitor

Technical features

• Product dimensions (width x height x depth) mm: 185 x 185 x 21
• Time to answer or open the door since the call is done: 30 s.
• Conversation time: 90 s.
• Conversation privacy: Yes
• Voltage: 18-24 Vdc
• Maximum consumption: 9.9 W
• Standby consumption (paired and connected): 1.5 W
• Working temperature (ºC, ºF); Humidity: [-5ºC, +40ºC][23ºF, 104ºF]; [0%, 90%]
• Line adaptor included in the terminal: Yes (A, C, default position OFF)
• Connections: Bin, Bin, Bout, Bout, -, A+, F1, T

General characteristics

• Technology: DUOX PLUS (non-polarised 2 wire full digital system)
• Audio/Video system: Audio/Video Color

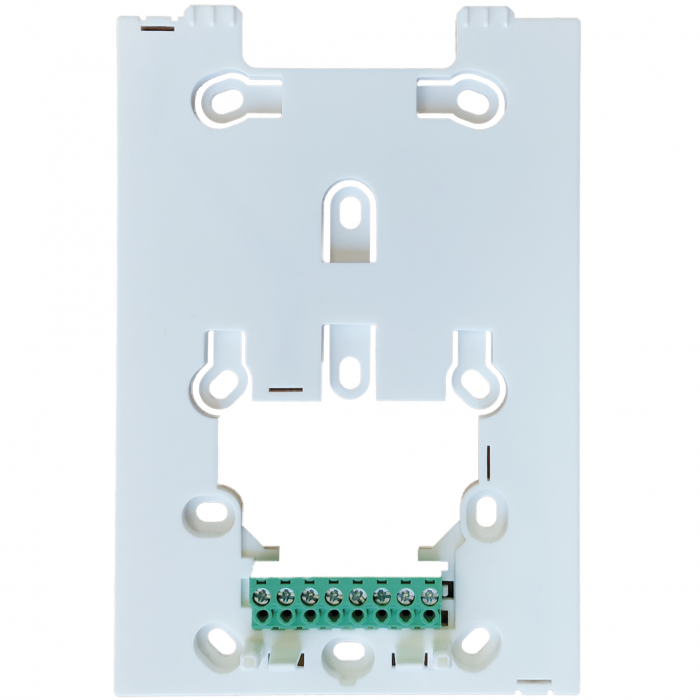

• Set-up (Installation): Surface mounted (order connector ref. 9447 separately)
• Desktop support: Yes (ref. 9420)
• Hands-free communication: Yes
• Press-to-talk communication configurable: Yes
• Induction loop: No (order monitor ref. 9479 with induction loop)
• Screen dimensions: 7” (Panoramic 16:9)
• Screen resolution (H x V): 800 x 480
• Color of the product: Matt white
• Number of pushbuttons: 5
• Kind of pushbuttons: Mechanical (silicone)
• Number of leds for lighted indications: 3 (red, blue, green with different states)

Programming of the terminal address

• From the terminal: From the OSD menu
• From the outdoor panel or guard unit: Yes
• From the outdoor panel throughout the apartment door bell: Yes

Adjustments

• Date and time: Yes
• Ring tones selection: Yes (5). Configurable for Block Panel 0, Block Panel 1, General Entrace Panel 0 and Concierge unit.
• Call volume control: Yes (10 levels by OSD menu)
• Do-not-disturb mode: Yes (by OSD menu) + Red led indication
• Audio volume control: Yes (10 levels by OSD menu)
• Brightness, color and contrast control: Yes (by OSD menu)

Call forwarding (app “blue” for smartphones & tablets)

• Call forwarding to smartphones and tablets: Yes (App Compatible with iOS>=11; Android>=6)
• Connectivity: Wifi (2,4 Ghz) and 3G/4G
• Pairing of the monitor with the wifi router of the house: Once the App is installed, the user must register first. Pairing by scanning a QR code in the monitor menu.
• Maximum number of apartments that can be managed from the App: No limit
• Maximum number of smartphones/tablets where call divert from the same house can be used: 10 (including administrator’s and invited user’s devices)
• Maximum number of users that can be invited by the administrator: 5
• Calls reception: Audio and Video from outdoor panels/concierge units. With pre-view before audio communication is on.
• Conversation time: 90 s.
• Mute: Yes
• Video off: To reduce the data consumption when being in 4G mode
• Switching of outdoor panels/cameras: Yes. It allows for switching to other panels/cameras (if any) with the same sequence than the monitors.
• Auto-on: Yes. communication possible with 3 outdoor panels/cameras without being called
• Activate additional feature (stairlight relay, second door, etc.): Yes. F1 button.
• Door opening: Yes, protected by the unblocking code of the smartphone/tablet: PIN, fingerprint, pattern or face ID.
• Concierge call: Yes
• Calls register: Yes (answered calls in green; missed calls in red)
• Settings: Name and picture of the house; Do not disturb; Change password; Ringtone and vibration mode.
• Picture & Video capture: Not from the APP. Only automatically from the monitor
• Available languages: 16 (Spanish, English, French, German, Portuguese, Finnish, Czech, Polish, Dutch, Norwegian, Greek, Danish, Swedish, Hebrew, Russian, Arabic)
• Technology: DUOX
• Measures of the product: 185 x 185 x 21 mm
• Peso: 0.488 kg
• Measures of the packed product: 19x4,3x19 cm
