UNV UAC-T125-AF28M-W BLACK 5MP ColorHunter TVI/CVI/AHD/CVBS White Light 40M Camera with AOC and MIC, Metal housing

Catalogue No:

UAC-T125-AF28M-W-BLACK

£44.39

(Exc. 20% VAT)

(£53.27 Inc. VAT)

Free next working day delivery on all orders over £100 (exc VAT)

–

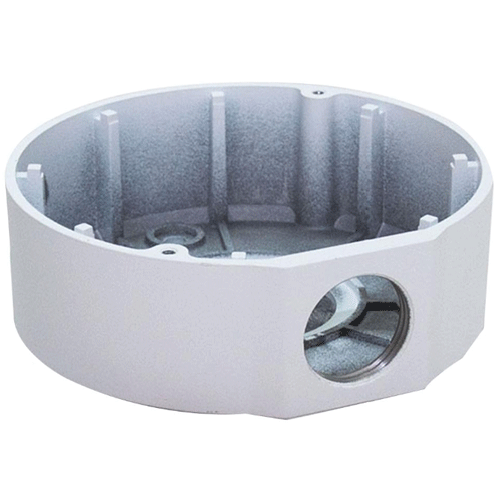

UNV UTR-JB03-G-IN Fixed Junction Box for Dome IP CCTV Cameras

Information

UNV UAC-T125-AF28M-W BLACK 5MP ColorHunter TVI/CVI/AHD/CVBS White Light 40M Camera with AOC and MIC, Metal housing

5MP ColorHunter HD Fixed Turret Analog Camera

Key Features

5MP high quality imaging
TVI/AHD/CVI/CVBS
Supports white light illumination, 24/7 color images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
Metal front face and housing
3-Axis

Specifications

Model	UAC-T125-AF28M-W	UAC-T125-AF40M-W
Sensor
Pixel	5MP
Size	1/2.7"
Minimum illumination	0.005lux (F1.4, AGC ON) 0 lux (white light on)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 111.5° V: 58.9° D: 134.8°	H: 89.6° V: 48.3° D: 106.4°
Illuminator
Illuminator	Two white-light illuminators
Illumination distance	40m
Lifetime	≥60,000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame rate	TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	24/7 color images
Digital noise reduction	2D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Flip	Supports 180° horizontal flip, 180° vertical flip
Audio
Microphone	Built-in Mic
Camera audio	TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤95% (RH, non-condensing)
Surge protection	4kV
Ingress protection	IP67
General
Power	DC12V (±25%), with reverse polarity protection. Max 3.28W
Mount	Surface mount (default), optional junction box and wall mount bracket
Dimensions	Φ111mm96mm (diameterheight)
Material	Metal and plastic
Weight	356g (0.79lb)
Certification	CB, CE, FCC, UL

Datasheet

Product Attributes

Catalogue No

UAC-T125-AF28M-W-BLACK

Brand

UNV Uniview
