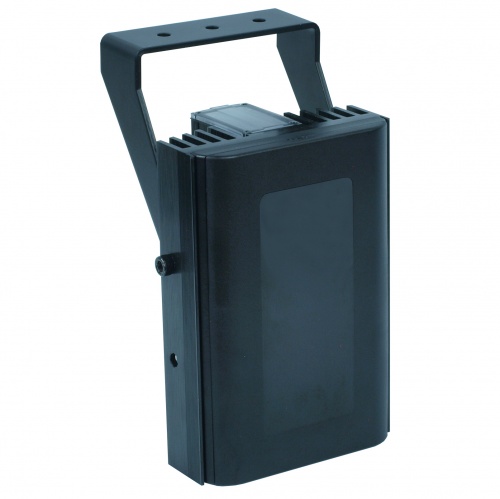

GJD IL-8 CLARIUS+ large 850nm IR LV 39w LED

GJD IL-8 CLARIUS+ large 850nm IR LV 39w LED

The Clarius® Plus range of high performance Infra-Red LED illuminators are designed to provide class leading performance, long life and ultra low maintenance. Incorporating the latest surface mount Dual Core® LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.

Key features

• Latest Dual Core® SMT LED technology
• Distances up to 228m (748’)
• Angle 10º, 30º, 60º & 95º
• Elliptical beam profiles
• 850nm or 940nm wavelengths
• Low power consumption (39W)
• Long life
• 5 year warranty
• IP66 weather proof rating
• Built-in photocell IR on/off photocell following contact
• Photocell following contact
• Telemetry input for remote switching
• 12-32V DC / 24V AC +/- 10%
• CleanLITE® self cleaning lens coating technology
• High quality anodised aluminium heatsink
• Pressure equalisation vent

The Clarius® Plus range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects. As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30°, 60º and 95º elliptical beam profiles. Installation is quick and easy, requiring only 12-32V DC / 24V AC +/- 10%.
