CDVI Diax Maglock Z&L Mounting Brackets Selection

Catalogue No:
500ZL
£22.84
£33.58
Saving Of
£10.74 (32%)
(Exc. 20% VAT)
(£27.41 Inc. VAT)
Z & L Kit for 180Kg lock
Z & L Kit for 300 & 400Kg locks
Z & L Kit for 500Kg lock

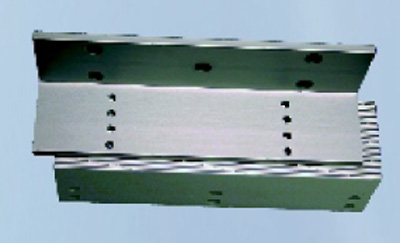

Z bracket for 300-400-500Kg lock

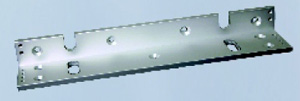

L bracket for 300Kg lock

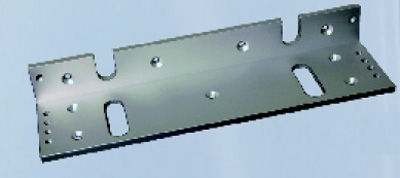

L Bracket for 500Kg lock
Adj L bracket for 300kg & 400Kg lock
Adj L bracket for 500Kg lock

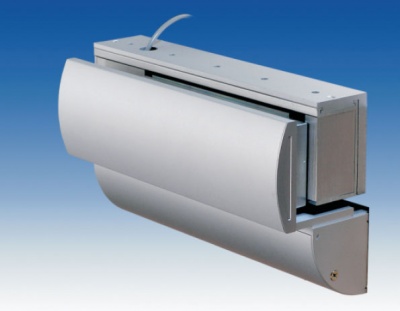

ARCH Z&L for 300Kg lock
ARCH Z&L for 500Kg lock
Glass cover for 300L
Double L bracket for 300Kg lock
Double L Bracket for 500Kg lock
+
Diax
Information

CDVI Diax Maglock Z&L Mounting Brackets Selection

This Z&L bracket is an ideal fixing solution for magnets and armatures. The 500-ZL fixes 500kg internal surface magnets on both inward and outward opening doors, and is adjustable for added flexibility.

Key features

  • For use with 500kg internal surface magnetic locks
  • Adjustable Z&L bracket
  • For inward-opening and outward-opening doors
  • Satin anodised aluminium finish
Datasheet
Wiring example

Please see diagrams below detailing fitting DIAX maglocks to inward and outward opening doors using L brackets and Z&L Brackets.

Detail of typical outward opening door

Detail of typical inward opening door

Product Attributes
Catalogue No
500ZL
Brand
