GJD020 Opal XL External PIR

GJD020 Opal XL External PIR
Catalogue No:
GJD020
£48.91
£56.42
Saving Of
£7.51 (13%)
(Exc. 20% VAT)
(£58.69 Inc. VAT)
–
+
Trustpilot

GJD
Information

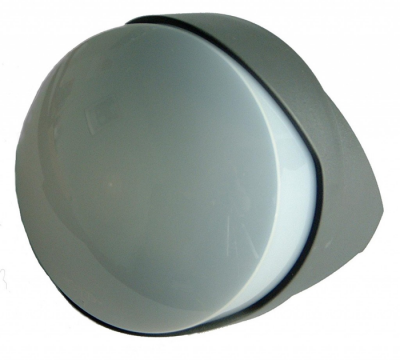

GJD020 Opal External PIR

The Opal external PIR detector is IP55 rated with a 10 to 35 metre detection range. It is an inconspicuous and extremely popular external passive infra-red detector that works in conjunction with GJD’s security lighting controllers.

Key Features

  • Works with GJD security lighting controllers
  • UV stabilised lens cover
  • Adjustable pan and tilt
  • High impact ABS housing
  • Pet immunity option
  • Internal fully adjustable bracket

When used with the GJD range of security lighting controllers, 24 hour indication and movement activated lighting for a timed period is automatically provided.

Specifications

RANGE

Adjustable up to 35m

COVERAGE

90º detection angle, 35m x 30m coverage max.

ADJUSTMENT

180º pan & 90º tilt

MOUNTING HEIGHT

Variable up to 6m - optimum 3m

FRESNEL LENS

36 zone, which can be masked with special masking tape (supplied)

OUTPUTS

“A” Open collector -ve switching - 25mA max. Alarm period 400ms ’S’ Open collector -ve switching - 25mA max. Alarm period: detection  +60 sec

POWER INPUT

9 to 15 VDC

CURRENT

6mA (12V nominal)

LUX LEVEL

ADJUSTABLE

Dusk (2 Lux) to 24 hour

OPERATING TEMP

-20ºC to +55ºC. Conformally coated electronics for increased stability

HOUSING

High Impact ABS Housing

PROTECTION RATING

IP55
Datasheet
Product Attributes
Catalogue No
GJD020
Brand
GJD
