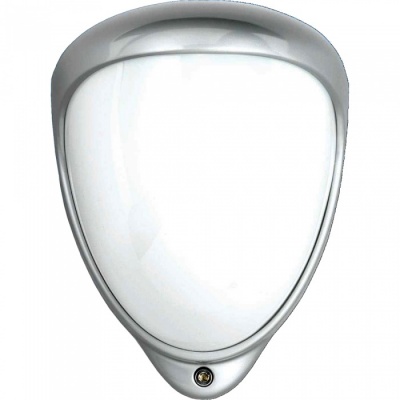

GJD GJD350 Perimeter Dual PIR detector

GJD GJD350 Perimeter Dual PIR detector
Catalogue No:
GJD350
£245.02
£252.08
Saving Of
£7.06 (3%)
(Exc. 20% VAT)
(£294.02 Inc. VAT)
Silver zinc alloy housing white cover
Silver zinc alloy housing black cover
Chrome plated housing white cover
Chrome plated housing black cover
–
+
Trustpilot

GJD
Information

GJD GJD350 Perimeter Dual PIR detector

The D-TECT 50, BS 8418 compliant movement  detectors combine advanced signal processing and  unique optical systems, which allow for the beam  range to be programmed from 25 to 50 metres,  avoiding boundary overspill, making it particularly  effective for perimeter detection.

Key Features

  • Detection area of up to  50m
  • Adjustable pan and tilt
  • A conduit cable adaptor  is available
  • Engineer friendly features to ease cable  termination, set-up and  servicing
  • Covert sensor module
Specifications

RANGE

From 25m to 50m programmable

COVERAGE

Detection Area 50m x 10m

ADJUSTMENT

180º pan + 90º tilt

MOUNTING HEIGHT

Optimum 3m

FRESNEL LENS

12 zones for each Pyro pair

CUSTOMISED OPTICS

Double silicon shielded quad element eliminates 50,000 Lux of white light

INDICATORS

1 x Blue LED on detection (configurable on/off)

OUTPUTS

2 x volt-free, silent solid state magnetically immune, 2 x neg, switched plus  one common tamper (front and rear switched)

POWER INPUT

9 - 24 AC/DC

CURRENT

12 mA (12V nominal)

PULSE COUNT

1-2

WALK TEST

Output test mode with LED indication

OPERATING TEMP

-20ºC to +55ºC conformally coated electronics for increased stability

TEMP. COMPENSATION

Digital sensitivity adjustment

TIMER OPTIONS

2 to 60 seconds

LIGHT SENSING

Dusk (2 Lux) to 24 hour

HOUSING

High impact zinc alloy

PROTECTION RATING

IP55

DIMENSIONS

145 x 120 x 115 mm

WEIGHT

750g NET, 880g GROSS

CABLE <200M

Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm

CABLE <500M

Utilising all five outputs (incl. tamper) - 12 core 16/0.2mm
Datasheet
Product Attributes
Catalogue No
GJD350
Brand
GJD
