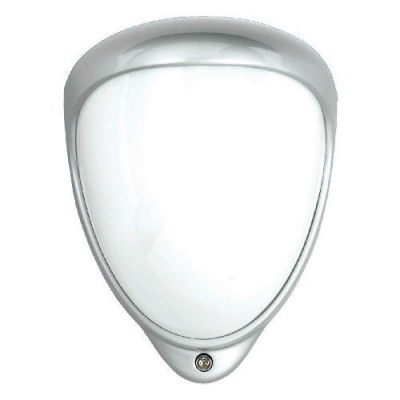

GJD GJD300 D-TECT 2 Quad PIR External Detectors

RANGE

Up to 30m programmable

COVERAGE

10º - 70º detection angle, 30m x 30m max

ADJUSTMENT

180º pan + 90º tilt, pan & tilt alignment markers

MOUNTING HEIGHT

Up to 6m (with range reduction) - Optimum 3m

FRESNEL LENS

28 zones for each Pyro pair

CUSTOMISED OPTICS

Double silicon shielded quad element eliminates 50,000 Lux of white light

INDICATORS

1 x Blue LED on detection

OUTPUTS

2 x volt-free, silent solid state magnetically immune

2 x neg. switched plus one common tamper (front and rear switches)

END OF LINE RESISTANCE  (EOL)

Selectable from 1K, 2K2, 3K3, 4K7, 5K6, 6K8

POWER INPUT

9-24 V AC/DC

CURRENT

11 mA (12V nominal)

PULSE COUNT

1-3

WALK TEST

Output test mode with LED indication

OPERATING TEMP

-20ºC to +55ºC conformally coated electronics for increased stability

TEMP. COMPENSATION

Digital sensitivity adjustment

TIMER OPTIONS

2 to 60 seconds

LIGHT SENSING

Dusk (2 Lux) to 24 hour

HOUSING

High impact zinc alloy

PROTECTION RATING

IP65

DIMENSIONS

145 x 120 x 115 mm

WEIGHT

770g NET, 910g GROSS

CABLE <200M

Utilising all five outputs (incl. tamper) - 12 core 7/0.2mm

CABLE <500M

Utilising all five outputs (incl. tamper) - 12 core 16/0.2mm
