GJD GJD140-W PEARL DUAL TECHNOLOGY ANTI MASKING CURTAIN DETECTOR (white)

Catalogue No:

GJD140-W

£69.32

~~£79.95~~

Saving Of

£10.63 (13%)

(Exc. 20% VAT)

(£83.18 Inc. VAT)

Free next working day delivery on all orders over £100 (exc VAT)

–

GJD GJD017 RFX External Wireless Receiver 3 Channel

+ £80.73

Information

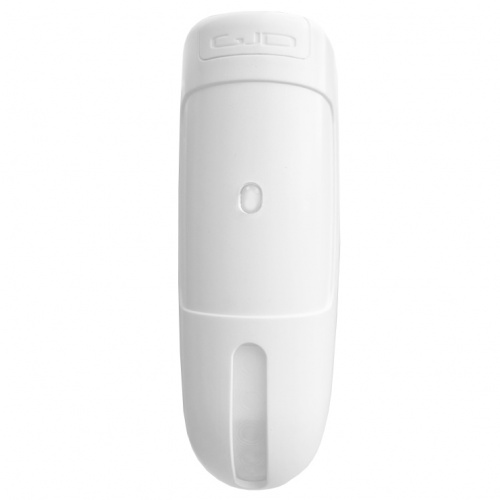

GJD GJD140-W PEARL DUAL TECHNOLOGY ANTI MASKING CURTAIN DETECTOR (white)

The Pearl sensor is an outdoor triple technology anti-masking motion detector, which uses PIR and microwave sensors for triple detection. The motion detector will aid to protect properties against crime with its invisible curtain.

Key features

IP65 (Suitable for outdoor use)
Low voltage 12V DC supply input
Temperature compensation for extreme environments
Available in silver or white
Four selectable detection ranges

The Pearl can be positioned to look across windows, doors or the entire length of the house or property wall. It also comes equipped with anti-masking circuitry and separate output contacts.

The Pearl detector is supplied with a customisable “T” bracket for narrow beam applications protecting across a door or window. An additional swivel bracket can be purchased for applications that require a customisable pan and tilt angle.

Specifications

DETECTION RANGE	3m, 6m, 9m, 12m
NORMALLY CLOSED ALARM	50mA 24Vdc alarm time 10s
NORMALLY CLOSED MASKING	50mA 24Vdc
NORMALLY CLOSED TAMPER	with 20Ω impendence 50mA
POWER INPUT	12V +/- 3V @ max 40mA
During installation the DC supply fault current shall be limited to a maximum of 1A
OPERATING TEMPERATURE	-20ºC to +55ºC
TEMPERATURE COMPENSATION	Digital
MICROWAVE FREQUENCIES	GJD140 10.587GHz UK GJD141 10.525GHz
MAX BEAM PATTERN AREA	12 x 2m
DIMENSIONS	117mm(h) x 44mm(w) x 41mm(d)
T-BRACKET	120mm(h) x 68mm(w) x 50mm(d)
BOXED	125mm(h) x 93mm(w) x 58mm(d)
WEIGHT	154g
PACKED WEIGHT	200g
CABLE (<200m)	8 core 7/0.2mm
WALK TEST	Using LED indication
RECOMMENDED MOUNTING HEIGHT	2 - 2.5m

Datasheet

Product Attributes

Catalogue No

GJD140-W

Brand

GJD
