Genie WIPX8VDVAF5 8MP 25FPS VR H.265 IP66&IK10 12mm IP 20M IR Dome camera DC12V PoE TDN WDR

Catalogue No:
WIPX8VDVAF5
£255.77
£295.00
Saving Of
£39.23 (13%)
(Exc. 20% VAT)
(£306.92 Inc. VAT)
+
Genie CCTV
Information

Genie WIPX8VDVAF5 8MP 25FPS VR H.265 IP66&IK10 12mm IP 20M IR Dome camera DC12V PoE TDN WDR

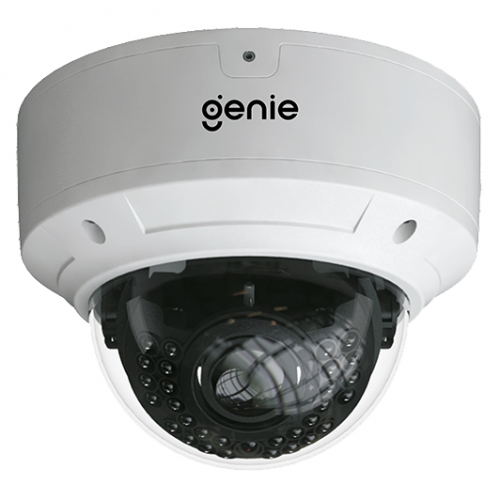

The Genie WIPX8VDVAF5 is an 8MP IP IR vandal dome camera with a 3.3-12mm auto focus lens. The camera features facial recognition when paired with any Genie AI NVR.

Key Features

  • 8MP (3840 x 2160) H.265 full real time coding
  • Maximum resolution: 3840 x 2160, ICR auto switch, true day / night
  • 20 ~ 30m IR night view distance
  • Motorised zoom lens
  • Micro SD card slot, up to 128GB
  • 3D DNR, true WDR, HLC, BLC, Smart IR and ROI coding
  • 1CH CVBS output, 1CH audio input, 1CH audio output
  • RS485, Hardware reset, 1CH alarm input, 1CH alarm output
  • DC12V/PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • IP66 & IK10 ingress protection
  • Supports three streams
  • Supports face detection
Specifications
Image Sensor

1 / 2.5” CMOS

Image Size

3840 x 2160

Electronic Shutter

1 / 25 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Minimum Illumination

0.024 Lux @ F1.2, AGC ON, 0 Lux with IR
0.068 Lux @ F2.0, AGC ON, 0 Lux with IR

Lens

3.3~12mm @ F1.4

Lens Mount

Φ14

Field of View

Horizontal field of view : 97.5° ~ 38.5°

Day & Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°, Tilt: 0°~77°,
Rotation: 0°~360°

Video Compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile / Main Profile / High Profile

Resolution

8MP (3840 x 2160), 2K (2560 x 1440), 3MP (2304 x 1296),
1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz : 8MP 2K/3MP/ 1080p / 720p (1~30fps)
50Hz : 8MP/ 2K/3MP/ 1080p/ 720p (1~25fps)

Sub Stream

60Hz : 1080p (1~5fps) / 720P (1~10fps) / D1 (1~30fps)
50Hz: 1080p (1~25fps) / 720P (1~25fps) / D1 (1~25fps)

Third Stream

60Hz : 720p / D1/ CIF / 480 x 240 (1~30fps)
50Hz: 720p / D1 / CIF / 480 x 240 (1~25fps)

Bit Rate

128 Kbps ~ 12 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser

ROI

Each ROI to be configured separately

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Supports simultaneous monitoring for up to 10 users. Supports multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS

Interface Protocol

Onvif compatible

Intelligent Analytics

Face recognition and face capture

Smart Alarm

Motion detection, Sensor detection, SD card error, SD card full, IP conflict, cable disconnection

General Function

Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc.

PoE

Yes

IR Distance

20~30m

Network Interface

RJ45

Video Output

CVBS Output (BNC x 1), Built-in CVBS output x 1

Audio

Audio input x 1, audio output x 1

Alarm

Alarm input x 1, alarm output x 1

Storage

Built-in micro SD card slot, up to 128GB

Hardware Reset

Yes

Ingress Protection

IP66 & IK10

Power Supply

DC12V / PoE

Power Consumption

< 7W

Operating Environment

– 30 °C ~ 60 °C (-22 °F~140°F) Humidity: Less than 95 % (Non-Condensing)

Dimensions

150.4 × 114.2 mm

Weight

Approx. 1.03 Kg

Datasheet
Product Attributes
Catalogue No
WIPX8VDVAF5
Brand
Warranty
2 Years
Lens supplied
Motorised zoom lens
IR Illumination
20 ~ 30m
Rating
IP66 & IK10
Resolution
8MP
CCD Type
1 / 2.7 “CMOS
