Genie WIPX4NEB 4MP 2.8-20mm 25FPS 30m IR IP67 PoE IP Eyeball Camera DC12V PoE

Catalogue No:

WIPX4NEB

£125.72

~~£145.00~~

Saving Of

£19.28 (13%)

(Exc. 20% VAT)

(£150.86 Inc. VAT)

Delivery Information

–

Information

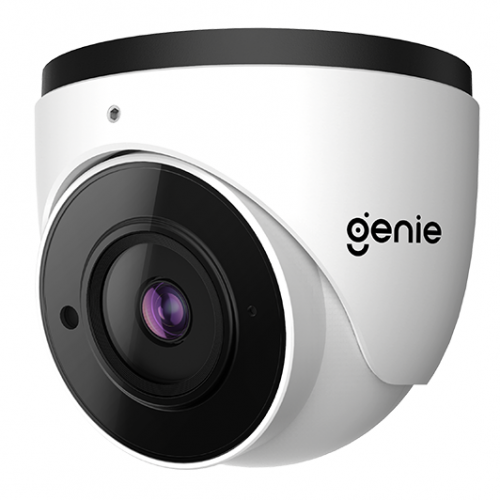

Genie WIPX4EB 4MP 2.8-20mm 25FPS 30m IR IP67 PoE IP Eyeball Camera DC12V PoE

The Genie WIPX4EBVAF is a 4MP IP IR eyeball camera with a 2.8-12mm auto focus lens. The camera features intelligent analytics as well as facial recognition when paired with any Genie AI NVR.

Key Feautes

4MP (2592 x 1520) H.265 full real-time coding
Maximum resolution: 2592 x 1520
ICR auto switch, true day / night vision
30 ~ 50m IR night view distance
Motorised zoom lens
Supports image distortion correction
3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart IR and ROI coding
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP67 ingress protection
Supports three streams
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics
Onvif compliant

Specifications

Weight: 0.46 kg

Image Sensor: 1 / 3 “CMOS

Image Size: 2592 × 1520

Electronic Shutter: 1 / 30 s ~ 1 / 100000 s

Iris Type: Fixed Iris

Minimum Illumination: 0.005 Lux @ F1.6, AGC ON: 0 Lux with IR
0.0028 Lux @ F1.2, AGC ON: 0 Lux with IR

Lens: 2.8mm @ F1.6, Horizontal FoV: 100.4°, Vertical FoV: 68°, Diagonal FoV: 108°

Lens Mount: M12

Focus: Fixed

Day & Night: ICR

Wide Dynamic Range: 120dB

BLC: Yes

HLC: Yes

Defog: Yes

Digital NR: 3D DNR

Angle Adjustment: Pan: 0°~360°, Tilt: 0°~75°, Rotation: 0°~360°

Video Compression: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

H.264 Compression Standard: Baseline Profile/Main Profile/High Profile

Resolution: 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1, CIF, 480 × 240

Main Stream: 4MP/2K/3MP/1080p / 720p (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
HFR mode: 1080p / 720p (60Hz : 1 ~ 60fps, 50Hz: 1~50fps)

Sub Stream: 720p/D1/CIF/480×240 (60Hz : 1 ~30fps; 50Hz: 1~25fps)

Third Stream: D1/CIF/480×240 (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)

Bit Rate: 64 Kbps ~ 8 Mbps

Bit Rate Type: VBR / CBR

Audio Compression: G711A / U

Image Settings: ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc.
Adjustable through client software or web browser

ROI: Each ROI to be configured separately

Remote Monitoring: Web browsing, CMS remote control

Online Connection: Supports simultaneous monitoring for up to 10 users. Supports multi-stream real time transmission

Network Protocol: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS

Interface Protocol: Onvif compatible

Intelligent Analytics

Perimeter Protection:
Line crossing, region entrance/ exiting/intrusion (human/motor
vehicle/non-motor vehicle classification),

Target Counting:
Line crossing human/motor vehicle/ non-motor vehicle counting,

Exception Detection:
Scene change, video blur and video colour cast detection,

Face Detection:
Face detection and face capture

Smart Alarm: Motion detection, SD card error, SD card full

General Function: Watermark, IP address filtering, video mask, heartbeat, password protection, non photosensitive switch, image distortion correction

PoE: Yes , IEEE802.3af

IR Distance: 20 ~ 30 m

Network Interface: RJ45

Video Output: No

Audio: 1CH audio input, 1 CH built-in MIC

Storage: Built-in Micro SD card slot, Up to 128GB

Hardware Reset: Yes

Alarm: No

Ingress Protection: IP67

Power Supply: DC12V (PoE power supply optional)

Power Consumption: < 7.5W

Operating Environment: – 30 °C ~ 60°C (-22°F~140°F) Humidity: Less than 95% (Non-condensing)

Dimensions: 94.6 x 82.8 mm

Weight: Approximately 0.45Kg

Datasheet

Product Attributes

Catalogue No

WIPX4NEB

Brand

Genie CCTV

Warranty

2 Years

Lens supplied

2.8mm

IR Illumination

30 Meters

Rating

IP67

Resolution

4MP

CCD Type

1 / 3 “CMOS
