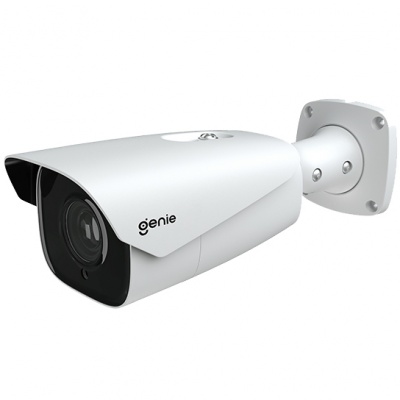

Genie WIPX4BVAF 4MP H.265 IP67 IP 40-60mIR Bullet camera TDM TWDR DC12V PoE

Catalogue No:

WIPX4BVAF

£203.92

~~£235.20~~

Saving Of

£31.28 (13%)

(Exc. 20% VAT)

(£244.70 Inc. VAT)

Lens Options2.8-12mm

2.8-12mm

7-22mm

Free next working day delivery on all orders over £100 (exc VAT)

–

Information

Genie WIPX4BVAF 4MP H.265 IP67 IP 40-60mIR Bullet camera TDM TWDR DC12V PoE

The Genie WIPX4BVAF is a 4MP IP IR bullet camera with a 2.8-12mm auto focus lens. The camera features intelligent analytics as well as facial recognition when paired with any Genie AI NVR.

Key Features

Maximum resolution: 2592 x 1520
50 ~ 70m IR night view distance
4MP (2592 x 1520) H.265 full real time coding
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
ICR auto switch, true day / night
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
Supports three streams
Support remote monitoring by smart phones and tablet PC’s with iOS and Android OS
Intelligent analytics
IP67 ingress protection
Onvif compliant

Specifications

Image Sensor 1 / 3” CMOS Image Size 2592 x 1520 Electronic Shutter 1 / 30 s ~ 1 / 100000 s Iris Type DC Iris Minimum Illumination 0.005 Lux @ F1.4,AGC ON, 0 Lux with IR 0.0028 Lux @ F1.2,AGC ON, 0 Lux with IR Lens 2.8~12mm @ F1.4, motorised zoom lens Lens Mount Φ14 Field of View Horizontal field of view: 94.2°~29.8° Wide Dynamic Range 120dB BLC Yes HLC Yes Defog Yes Digital NR 3D DNR Angle Adjustment Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360° Video Compression Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG H.264 Compression Standard Baseline Profile, Main Profile, High Profile Resolution 4MP (2592 x 1520), 2K (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240 Main Stream 4MP, 2K, 3MP, 1080p, 720p (60Hz : 1 ~ 30fps, 50Hz: 1~25fps) HFR mode: 1080p, 720p (60Hz : 1 ~ 60fps, 50Hz: 1~50fps) Sub Stream 720p, D1, CIF (60Hz : 1 ~ 30fps, 50Hz: 1~25fps) Third Stream D1, CIF, 480 x 240 (60Hz : 1 ~ 30fps, 50Hz: 1~25fps) Bit Rate 64 Kbps ~ 8 Mbps Bit Rate Type VBR / CBR Audio Compression G711A / U Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. Adjustable through client software or web browser. ROI Each ROI to be configured separately Remote Monitoring Web browsing, CMS remote control Online Connection Supports simultaneous monitoring for up to 4 users. Supports multi-stream real time transmission. Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS Interface Protocol Onvif compliant Intelligent Analytics Object abandoned / missing detection, Region entrance / exiting / intrusion detection (human / vehicle classification), Line crossing detection (human / vehicle classification), Video tampering detection, Scene change detection, Face recognition and face capture, Crowd density detection, Heat map, Human/vehicle counting, Human tracking Smart Alarm Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection General Function Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction PoE Yes , IEEE802.3af IR Distance 50 ~ 70 m Network Interface RJ45 Video Output CVBS output (BNC x1) Audio 1CH audio input, 1CH audio output Alarm 1CH alarm input, 1CH alarm output Storage Built-in micro SD card slot, up to 128GB Hardware Reset Yes Ingress Protection IP67 Power Supply DC12V / PoE Power Consumption < 10W Operating Environment – 30 °C ~ 60°C (-22°F~140°F) Humidity: Less than 95% (Non-condensing) Dimensions 279.5 x 100.3 x 88.9 mm Weight Approx. 1.04 Kg

Datasheet

Product Attributes

Catalogue No

WIPX4BVAF

Brand

Genie CCTV

Warranty

2 Years

IR Illumination

40-60m

Rating

IP67

Resolution

4MP

CCD Type

1 / 3” CMOS

Compression

H.265
