Genie WIPX2LBVLPR 2MP H.265 IP ANPR Camera with 7-22mm Motorised Lens with 50m IR

Genie WIPX2LBVLPR 2MP H.265 IP ANPR Camera with 7-22mm Motorised Lens with 50m IR
Catalogue No:
WIPX2LBVLPR
£374.37
£475.00
Saving Of
£100.63 (21%)
(Exc. 20% VAT)
(£449.24 Inc. VAT)
–
+
Genie CCTV
Information

Genie WIPX2LBVLPR 2MP H.265 IP ANPR Camera with 7-22mm Motorised Lens with 50m IR

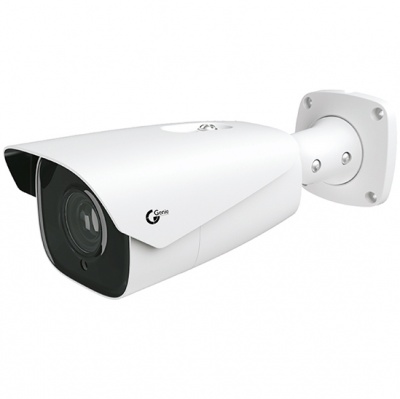

The Genie WIPX2LBVLPR bullet style camera is a high quality IP camera especially designed to operate with the Genie “AI” NVR’s and provide a very effective LPR (License Plate Recognition) system suitable for a host of applications including clubs, business car parks, private estates etc. etc. The camera utilises a motorised auto focus lens for ease of set up, and whilst it boasts long range IR the “Starlight” sensor used provides colour images in the darkest of environments.

Key features

  • Starlight
  • 1080p (1920 x 1080) @ 30fps
  • Support Smart H.265/H.264 coding
  • ICR auto switch, True day/night
  • 50~70m IR night view distance, motorised zoom lens
  • 3D DNR, true WDR, HLC, BLC and ROI coding
  • Built-in micro SD card slot, up to 128GB
  • 1 channel audio input and output, Hardware reset
  • To be used in conjunction with an “AI” network video recorder
  • IP67 ingress protection
  • Supports three streams
  • 1 channel alarm input and output
  • Supports mobile surveillance by smart phones with iOS and Android OS
  • Intelligent Analytics: Video abnormality (Video tampering, scene change), Licence plate recognition
  • DC12V / PoE power supply
Specifications
Image Sensor

1 / 2.8” CMOS

Image Size

1920 x 1080

Electronic Shutter

1 / 25 s ~ 1 / 100000 s

Iris Type

DC Iris

Minimum Illumination

0.0026 Lux @ F1.2,AGC ON, 0 Lux with IR
0.005 Lux @ F1.6, AGC ON, 0 Lux with IR

Lens

Motorised zoom lens, 7-22mm @ F1.4

Lens Mount

Φ14

Field of View

Horizontal: 44°~17.6°

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°

Video Compression

Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile / Main Profile / High Profile

Resolution

1080p (1920 x 1080), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

60Hz :1080p / 720p (1~30fps), 50Hz : 1080p / 720p (1~25fps),
HFR Mode : 1080p / 720p (1~60fps / 50fps)

Sub Stream

60Hz : 720p / D1 / CIF (1~30fps), 50Hz: 720p / D1 / CIF (1~25fps)

Third Stream

60Hz : D1 / CIF / 480 x 240 (1~30fps), 50Hz : D1 / CIF / 480 x 240 (1~25fps)

Bit Rate

64 Kbps ~ 6 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A/U

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. Adjustable through client software or web browser.

ROI

Each ROI to be configured separately

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Supports simultaneous monitoring for up to 10 users. Supports multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol

Onvif compatible

Intelligent Analytics

License plate recognition, video abnormality detection (video tampering, scene change)

Smart Alarm

Motion detection, Sensor alarm, SD card full, SD card error, IP address conflict, Network disconnection

General Function

Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction

PoE

Yes, (802.3af)

IR Distance

50~70m

Snapshot

Overview and cutout of plate for picture

White List

10000

Capture Speed Range

0~70km/h

Network Interface

RJ45

Video Output

No

Audio

1CH audio input and output

Alarm

1CH alarm input, 1CH alarm output

Storage

Built-in Micro SD card slot, up to 128GB

Hardware Reset

Yes

Ingress Protection

IP67

Power Supply

DC12V / PoE

Power Consumption

< 11W

Operating Environment

-30 °C ~ 60°C (-22 °F~140°F) Humidity: Less than 95 % (Non-Condensing)

Dimensions

279.5 x 100.3 x 88.9 mm

Weight

Approx. 1.04 Kg

Datasheet
Product Attributes
Catalogue No
WIPX2LBVLPR
Brand
Genie CCTV
