Genie PWIP8BVAF 8MP H.265 IP Bullet 50m IR 12VDC 2.8-12mm VF Camera

Genie PWIP8BVAF 8MP H.265 IP Bullet 50m IR 12VDC 2.8-12mm VF Camera
Catalogue No:
PWIP8BVAF
£149.93
£173.25
Saving Of
£23.32 (13%)
(Exc. 20% VAT)
(£179.92 Inc. VAT)
–
+
Genie CCTV
Information

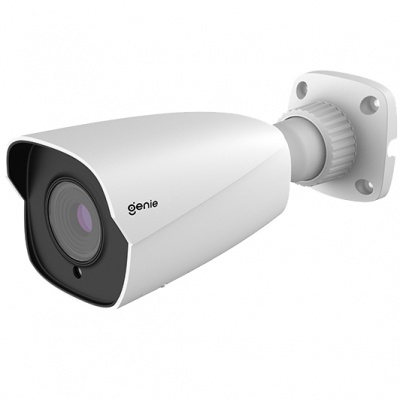

Genie PWIP8BVAF 8MP H.265 IP Bullet 50m IR 12VDC 2.8-12mm VF Camera

The Genie PWIP8BVAF is a 8MP IP IR bullet camera with a 2.8-12mm varifocal auto focus lens. The camera also features up to 50m IR night view distance as well as being IP67.

Key Features

  • NDAA compliant
  • 8MP (3840 x 2160) H.265 coding
  • Maximum resolution: 3840 x 2160
  • ICR auto switch, true day / night, ROI coding
  • 3D DNR, digital WDR, HLC, BLC, defog
  • 30~50m IR night view distance
  • DC12V / PoE power supply
  • IP67 ingress protection
  • Supports three streams
  • Supports remote monitoring by smart phones and tablet PCs with iOS and Android OS
  • Intelligent analytics
Specifications
Image Sensor

1 / 2.7 “CMOS

Image Size

3840 x 2160

Electronic Shutter

1 / 25 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Minimum Illumination

0.11 Lux @ F2.2, AGC ON, 0 Lux with IR
0.032 Lux @ F1.2, AGC ON 0 Lux with IR

Lens

2.8~12mm @ F1.4, (Motorised zoom lens), Horizontal field of view: 102.7°~32.2°

Lens Mount

M12 or Φ14 optional

Wide Dynamic Range

Digital WDR

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°

Video Compression

H.265, H.264

H.264 Compression Standard

Baseline Profile, Main Profile, High Profile

Resolution

8MP ( 3840 x 2160), 6MP (3072 x 2048), 5MP (2592 x 1944), 720p (1280 x 720), D1, CIF, 480 x 240

Main Stream

8MP, 6MP, 5MP (1~20fps)

Sub Stream

720p, D1, CIF (1~20fps)

Third Stream

D1, CIF, 480 x 240 (1~20fps)

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. Adjustable through client software or web browser

ROI

Each ROI to be configured separately

Remote Monitoring

Web browsing, CMS remote control

Online Connection

Supports simultaneous monitoring for up to 3 users. Supports multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol

Onvif compatible

Intelligent Analytics

Region intrusion detection, Scene change detection, Line crossing detection

Smart Alarm

Motion detection, SD card error, SD card full

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock

PoE

Yes

IR Distance

30 ~ 50 m

Network Interface

RJ45

Video Output

No

Audio

1CH audio input

Storage

Built-in Micro SD card slot up to 128GB

Hardware Reset

Yes

Ingress Protection

IP67

Power Supply

DC12V / PoE

Power Consumption

< 9.5W

Operating Environment

– 30°C ~ 60°C (-22°F~140°F), Humidity: Less than 95 % (Non-condensing)

Dimensions

217.7 x 80.5 x 80.5 mm

Weight

Approximately 0.66Kg (Net)

Datasheet
Product Attributes
Catalogue No
PWIP8BVAF
Brand
Genie CCTV
Warranty
2 Years
Lens supplied
2.8-12mm VF
IR Illumination
50 Meters
Rating
IP67
Resolution
2MP 1080p
CCD Type
1 / 2.9 “CMOS
Compression
H.265 / H.264 / MJPEG
Record Rates
25fps
