Genie PWIP4BVAFG 5MP 12VDC PoE 2.8-12mm VF 50m IR Autofocus Camera

Catalogue No:

PWIP4BVAFG

£108.11

~~£124.95~~

Saving Of

£16.84 (13%)

(Exc. 20% VAT)

(£129.73 Inc. VAT)

Free next working day delivery on all orders over £100 (exc VAT)

–

Information

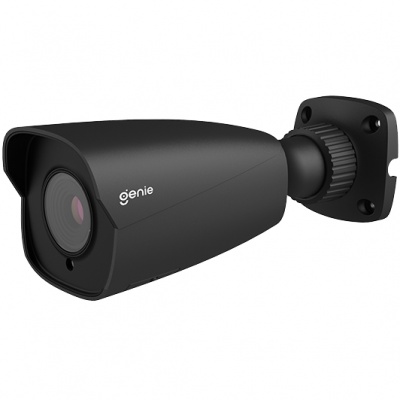

Genie PWIP4BVAF 5MP 12VDC PoE 2.8 - 12mm VF 50m IR Autofocus Camera

The Genie PWIP4BVAFG are 4MP IP IR bullet cameras with a 2.8-12mm varifocal auto focus lens. The cameras also feature up to 50m IR night view distance as well as being IP67.

Key Features

NDAA compliant
4MP (2560 x 1440) H.265 coding
Maximum resolution: 2560 x 1440
ICR auto switch, true day / night, ROI coding
3D DNR, digital WDR, HLC, BLC, defog
30~50m IR night view distance
Supports remote monitoring by smart phones and tablet PCs with iOS and Android OS
DC12V / PoE power supply
IP67 ingress protection
Supports three streams
Intelligent analytics : Object removal detection, abnormal video signal detection, line crossing detection and region intrusion
detection

Specifications

Image Sensor: 1 / 2.7 “CMOS

Image Size: 2560 x 1440

Electronic Shutter: 1 / 25 s ~ 1 / 100000 s

Iris Type: Fixed Iris

Minimum Illumination: 0.011 Lux @ F1.2, AGC ON,
0 Lux with IR
0.04 Lux @ F2.26, AGC ON,
0 Lux with IR

Lens: 2.8~12mm @ F1.4, Horizontal field of view: 94°~35.7°

Lens Mount: M12 or Φ14 optional

Wide Dynamic Range: Digital WDR

BLC: Yes

HLC: Yes

Defog: Yes

Digital NR: 3D DNR

Angle Adjustment: Pan: 0°~360°,Tilt: 0°~90°, Rotation: 0°~360°

Video Compression: H.265, H.264

H.265 Compression Standard: Main Profile @ Level 4.1 High Tier

Resolution: 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720),
D1, CIF, 480 x 240

Main Stream: 60Hz: 4MP, 3MP, 1080p (1~30fps)
50Hz: 4MP, 3MP, 1080p (1~25fps)

Sub Stream: 60Hz : 720p (1~15fps), D1 (1~30fps), CIF (1~30fps)
50Hz: 720p (1~12fps), D1 (1~25fps), CIF (1~25fps)

Bit Rate: 64 Kbps ~ 5 Mbps

Bit Rate Type: VBR / CBR

Image Settings: ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser

ROI: Each ROI to be configured separately

Remote Monitoring: Web browsing, CMS remote control

Online Connection: Supports simultaneous monitoring for up to 4 users. Supports multi-stream real time transmission

Network Protocol: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS

Interface Protocol: Onvif compatible

Intelligent Analytics: Region intrusion detection, Object removal detection, Abnormal video detection, Line crossing detection

Smart Alarm: Motion detection

General Function: Watermark, IP address filtering, video mask, heartbeat, password protection

PoE: Yes

IR Distance: 30 ~ 50 m

Network Interface: RJ45

Video Output: No

Audio: No

Storage: No

Hardware Reset: No

Ingress Protection: IP67

Power Supply: DC12V / PoE

Power Consumption: < 9W

Operating Environment: – 30°C ~ 60°C (-22°F~140°F), Humidity: Less than 95 % (Non-condensing)

Datasheet

Product Attributes

Catalogue No

PWIP4BVAFG

Brand

Genie CCTV

Warranty

2 Years

Lens supplied

2.8-12mm autofocus

IR Illumination

50 Meters

Rating

IP67

Resolution

4MP 2560x1440

CCD Type

1/2.7" CMOS

Compression

H.265 - H.264

Record Rates

25fps
