Genie IP16GESP2 16 Port Gigabit Ethernet Switch Rack mount

Genie IP16GESP2 16 Port Gigabit Ethernet Switch Rack mount
Catalogue No:
IP16GESP2
£286.11
£330.00
Saving Of
£43.89 (13%)
(Exc. 20% VAT)
(£343.33 Inc. VAT)
–
+
Genie CCTV
Information

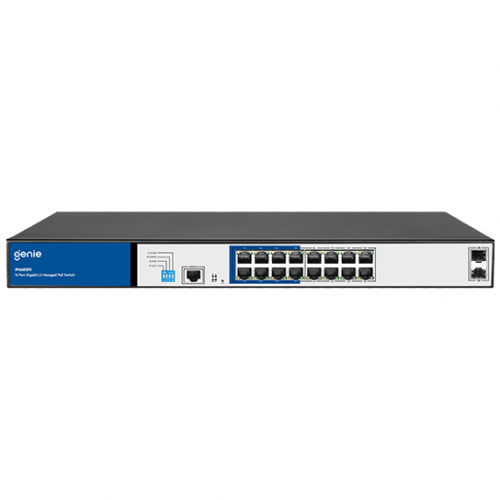

Genie IP16GESP2 16 Port Gigabit Ethernet Switch Rack mount

The Genie IP16GESP2 is a 16 port managed PoE switch designed for security transmission and Wi-Fi coverage. It can meet the PoE power supply requirements of Wi-Fi AP, IP camera, Wi-Fi bridge, IP phone and other types of equipment. The product adopts a new generation of high-performance hardware and software platforms to provide flexible, cost-effective access and Gigabit uplink ports for complete security protection. It’s easy to manage and maintain, and meet user requirements for network equipment for high security but at a low-cost. The IP16GESP2 is applicable to network access, aggregation, and core application scenarios of many applications.

Key Features

  • 6KV lightning protection
  • Short cut functions: AI VLAN, AI Extend 1~8 port 250m PoE distance, AI PoE, AI Q0S (video priority)
  • Support based on the port number, IP address, MAC address and user access restrictions
  • Supports PoE and settings for PoE port priority
  • Supports L2 (Layer 2) ~ L4 (Layer 4) packet filtering
  • Supports multi-cast suppression
  • Supports loop protection, root bridge protection, TC protection, BPDU protection and BPDU filtering
  • Supports broadcast suppression
  • Supports unknown unicast suppression
  • Supports static aggregation
  • Supports dynamic aggregation
  • Supports IP, MAC and hybrid load balancing modes
  • Supports up to 32 aggregation groups
  • Supports Web network management (HTTP, HTTPS, SSL, V3)
  • Supports SNMP V1/V2/V3
  • Supports LLDP, RMON
  • Supports ARP protection, IP source protection, DoS protection
  • Supports Ping, Tracert detection and cable detection
Specifications
Software

–

Protocol Standard

IEEE 802.3: Ethernet Media Access Control (MAC) Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (fiber)
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1p: LAN Layer 2 QoS/Cos protocol for traffic priority (multi-cast filtering)
IEEE 802.1q: VLAN
IEEE 802.1d: STP Spanning tree
IEEE 802.1s: MSTP Spanning tree
IEEE 802.1w: RSTP Spanning tree
IEEE 802.3af
IEEE 802.3at

Shortcut Function

One key AI VLAN
One key AI Extend (1-8 Port 250m PoE distance)
One key AI PoE
One key Q0S (Video priority)

DHCP

Supports DHCP Snooping

VLAN

Supports 4K VLAN
Supports 802.1Q VLAN, MAC VLAN ,IP VLAN
Voice VLAN

MAC Address Table

Comply the IEEE 802.1d standard, Supports MAC address learning and aging automatically. Supports static, dynamic, filter address table

Safety

Password protection
Supports based on the port number, IP address, MAC address restrictions on user access
Supports HTTPS, SSL V3, TLS V1, SSH V1/V2
Supports IP-MAC-PORT ternary binding
Supports ARP protection, IP source protection, DoS protection
Supports DHCP Snooping, DHCP attack protection
Supports 802.1X certificated, AAA
Supports port security, port isolation
Supports CPU protection

PoE Management

Supports PoE power limit
Supports PoE chip status view
Supports setting PoE port priority
Supports setting PoE power supply time period

Access Control (ACL)

Supports L2 (Layer 2) ~ L4 (Layer 4) packet filtering
Supports port mirroring, port redirection, flow rate limiting, QoS re-marking

Quality of Service (QoS)

Supports 8 port queue
Supports port priority, 802.1p priority, DSCP priority

Spanning Tree

Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocol
Supports loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering

Multicast

Supports IGMP v1/v2 Snooping
Supports fast leave mechanism
Supports multicast VLAN
Supports multicast filtering, packet statistics, and unknown multicast discards.

Storm Suppression

Supports multi-cast suppression
Supports broadcast suppression
Supports unknown unicast suppression
Supports static aggregation
Supports dynamic aggregation
Supports IP, MAC, and hybrid load balancing modes
Supports up to 32 aggregation groups

IPv6

Supports IPv6 Ping, IPv6 Tracert, IPv6 Telnet
Supports IPv6 SSH, IPv6 SSL

Management and Maintenance

Supports Web network management (HTTP, HTTPS, SSL V3)
Supports CLI (Telnet, SSH V1/V2, local serial port)
Support SNMP V1/V2/V3
Supports LLDP, RMON
Supports ARP protection, IP source protection, DoS protection
Supports CPU monitoring, memory monitoring
Supports system log, grading warning
Supports Ping, Tracert detection, cable detection

Hardware

–

Network Standard

IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at

Port

16 10/100/1000Mbps RJ45 port
2 gigabit SFP
1 Console

PoE

16 10/100/1000Mbps RJ45 port support PoE+
Max 150W
Single port max 46W

LED’s

18 Link/Act LED’S
16 PoE LED’s
1 SYS LED
1 Power LED

Performance

Forwarding mode: Store and forward
Bandwidth: 36Gbps
Packet forwarding rate: 23.8Mpps
8K MAC address table

Lightning Protection

6KV

Input

100-240V/50-60Hz

Dimensions

440 × 180 × 44 mm

Datasheet
Product Attributes
Catalogue No
IP16GESP2
Brand
Genie CCTV
