Genie WHD5EBVAF 5MP AHD IR 2.8-12mm auto focus

Catalogue No:
WHD5EBVAF
£81.59
£94.50
Saving Of
£12.91 (14%)
(Exc. 20% VAT)
(£97.91 Inc. VAT)
+
Genie CCTV
Information

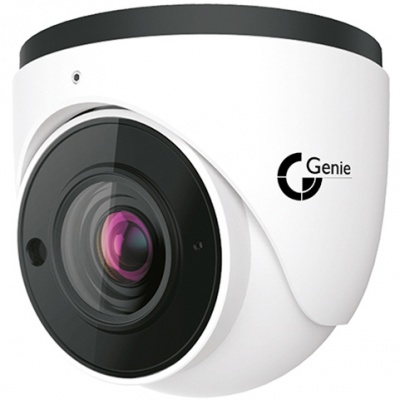

Genie WHD5EBVAF 5MP AHD IR 2.8-12mm auto focus

The WHD5EBV is a 4 in 1, True Day/Night 5MP (TVI) / 4MP (AHD) external eyeball style camera with a varifocal lens, and provides higher resolution images for HD Analogue Systems. In ideal conditions, this superb camera will provide up to 30m night time viewing. Excellent Wide Dynamic range will provide clear images even in difficult bright light conditions.

Key Features

  • 5MP @ 20fps / 4MP @ 30fps image, high resolution, true colour
  • AHD / TVI / CVI / CVBS video output
  • 3.3mm – 12mm varifocal lens
  • CMOS progressive scan
  • Support OSD menu
  • High speed, long distance, real time transmission
  • Auto colour to B&W at low illumination
  • Support ICR switch, true day / night, WDR
  • Support noise reduction function
  • 20 ~ 30m IR night view distance
  • IP66
  • Support COC
Specifications
Weight
0.68 kg
Image Sensor

1 / 2.7” CMOS

Image Size

2560 x 1936

Image System

PAL / NTSC

Resolution

5MP

Electronic Shutter

Auto

Minimum Illumination

Colour : 0.001 Lux @ F1.2, AGC ON
B&W : 0 Lux with IR

Lens

2.8-12 mm motorised lens

Lens Mount

D14

S / N Ratio

≥52dB (AGC Off)

Frame Rate

5MP @ 20fps

Video Output

AHD / TVI / CVI / CVBS

IR Distance

30 ~ 50 m

Function Control

OSD (COC Control)

Day & Night

ICR

Digital WDR

Yes

Digital NR

Yes

AGC

Yes

Auto White Balance

Yes

BLC

Yes

LSC

Yes

HLC

Yes

Mirror

Yes

Defog

No

Sharpness

Yes

Smart IR

Yes

Motion Detection

Yes

Defect Correction

Auto

Language

13 languages

Angle Adjustment

Pan: 0°~360°, Tilt: 0°~90°,
Rotation: 0°~360°

Ingress Protection

IP67

Power Supply

DC12V (± 10%)

Power Consumption

IR Off : < 1W, IR On : < 6W

Working Environment

– 30°C ~ 50°C, 10 % ~ 90 % (Relative Humidity)

Dimensions

111.5 x 99.6 mm

Weight

Approximately 0.54Kg (Net)

Datasheet
