Genie GHDCAM2MCP 2.1MP 4.3mm Encapsulated cam

Genie GHDCAM2MCP 2.1MP 4.3mm Encapsulated cam
Catalogue No:
GHDCAM2MCP
£105.35
£121.50
Saving Of
£16.15 (13%)
(Exc. 20% VAT)
(£126.42 Inc. VAT)
–
+
Genie CCTV
Information

Genie GHDCAM2MCP 2.1MP 4.3mm Encapsulated cam

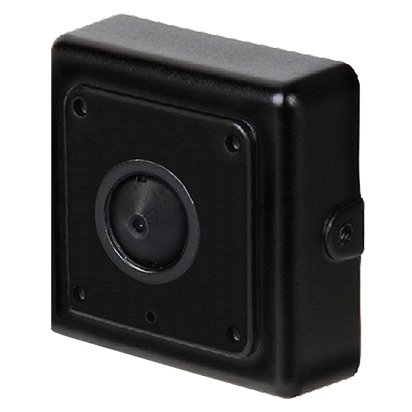

The Genie GHDCAM2MCP is a 2.1MP AHD encapsulated camera with a 4.3mm conical pinhole lens and built-in OSD with a 4-in-1 output.

Key features

  • 1/3” Sony 2.1MP Progressive Scan Starvis CMOS
  • 4-in-1 output (AHD, TVI, CVI, CVBS)
  • 4.3mm conical pinhole lens
  • D-WDR (Wide Dynamic Range)
  • Digital Noise Reduction (2D and 3D DNR)
  • Electronic Day & Night
  • UTC function supports OSD Control
  • 110mA (Max), DC12V
  • Defog
  • NDAA compliant
Specifications
Weight
0.2 kg
Image Sensor

1/2.8” Progressive Scan Sony Starvis CMOS

Resolution

TVI, AVI, CVI : 1080p @ 30 (25)fps /
720p @ 60fps (50fps) / 720p @ 30fps (25fps)
TV out: CVBS (720H) NTSC/PAL

Electronic Shutter

Auto / Flicker / Manual / (1/30(25)~1/30,000)

Digital Slow Shutter (DSS)

OFF~ x32

Minimum Illumination

0.2 Lux (F2.0, AGC33dB, DSS:x2)

Lens

3.6mm, F 2.0 fixed lens
Angle of View:
112.3 (D) x 93.7 (H) x 49.3° (V)

Effective Pixels

1945 (H) x 1097 (V)

White Balance

AUTO/AUTO EXT/PUSH LOCK/MANUAL

Level

135.6dB

D-WDR

OFF/LOW/MIDDLE/HIGH

WDR/BLC

OFF/BLC/HLC/WDR15P/WDR30P
(4 Zones selectable)

Auto Gain Control (AGC)

OFF~45dB

Day&Night

AUTO/COLOUR/B&W (Electronic D&N)

Noise Deduction

3D-DNR (OFF/LOW/MIDDLE/HIGH)

Motion Detection

OFF/ON (4 Zones)

Privacy Mask

16 Zones

Image Rotation

OFF/H-FLIP/V-FLIP/HV-FLIP

Defog

OFF/ON (AUTO/MANUAL)

Sharpness

0~10

OSD Control

Cable JOYSTIC, UTC

Language

7 languages

Video Output

AHD, TVI, CVI, CVBS

Power Supply

DC12V (±10%)

Power Consumption

Max 110mA @ DC12V

Temperatue

Operating: -10°C ~ 50°C
Storage: -20°C ~ +60°C

Dimensions

30 x 30 mm

Weight

27.5g (Approx.)

Datasheet
Product Attributes
Catalogue No
GHDCAM2MCP
Brand
Genie CCTV
Warranty
1 Year
Lens supplied
3.6mm
Rating
IP66
Resolution
1920 x 1080P 2MP
CCD Type
1/3" Sony 2MP CMOS
