Genie GAHD18IRPTZ 2MP 1080P 18 X zoom PTZ IR camera

Catalogue No:

GAHD18IRPTZ

£354.55

~~£409.00~~

Saving Of

£54.45 (13%)

(Exc. 20% VAT)

(£425.46 Inc. VAT)

Free next working day delivery on all orders over £100 (exc VAT)

–

Information

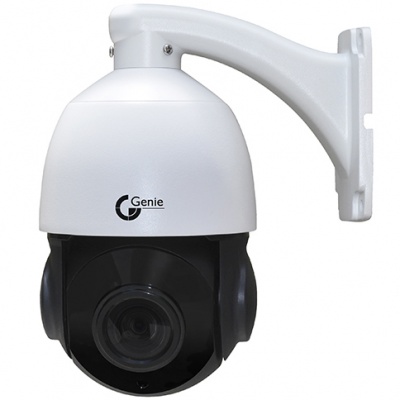

Genie GAHD18IRPTZ 2MP 1080P PTZ IR camera

The Genie GAHD18IRPTZ is an AHD 18x optical zoom external 360° PTZ camera. With 360° endless pan range and 0-90° tilt range, the camera is suited to a wide range of environments.

Key Features

18x optical zoom
IP66 ingress protection
60m IR distance (in ideal conditions)
RS485 PTZ control
Supports auto iris, electronic shutter, automatic white balance, backlight compensation
6 piece infrared lights
Supports 220 presets, 8 patrols, 4 patterns
360° endless pan range and 0-90° tilt range
PELCO-D/P communication protocols
NDAA compliant

Specifications

Weight	1.38 kg
Image Sensor	1/2.8 Sony CMOS
Image	Flip / Mirror
Scanning System	Progressive scanning
Resolution	1920 x 1080
Electronic Shutter	1/25 ~ 1/10,000s
Minimum Illuminatio	Colour: 0.05 Lux / F2, BW: 0.005 Lux / F2, 0 Lux (IR)
Optical Zoom	18x
S / N Ratio	50dB (AGC Off)
Exposure Mode	Auto
2D DNR	Supports
BLC	On / Off
Synchronous	Internal synchronisation
Day / Night Mode	Supports IR-CUT colour to black
Focus Mode	Auto / Manual
Gain Control	Auto / Manual
Lens Initialisation	Built-in
Focus Range	4.7 ~ 84.6mm (Wide-Tele)
Pan Angle	54.8 ~ 3.4 (Wide Tele)
IR Distance	60m (in ideal conditions)
IR Angle	3 angle adjustable with zoom in/out
Pan Speed	0.6 ~ 180/S
Tilt Speed	3.5 ~ 30/S
Tilt Range	0 ~ 90, Auto flip 180
Manual Speed	High / Middle / Low for adjustable
Proportional Zoom	Supports
Preset	220
Patrol	4, each patrol can add 32 preset
Pattern	4, total record time more than 10mins
A.B Preset Scan	Supports
Park Function	Supports, can select preset, patrol, pattern, A.B scan, pan auto running
BNC Output	AHD / CVI / TVI / CVBS (1Vp-p 75, PAL / NTSC, BNC
Communication Protocols	PELCO-D/P
ID	1-255
Baud Rate (RS485)	2400/4800/9600bps/auto identify
Ingress Protection	IP66
Lightning Protection	TVS3000V lightning protection, surge protection and voltage transient protection
Power Supply	DC12V/2A
Power Consumption	Max. 20W (Not including the heat)
Working Environment	-20C~-60C, 90%RH (Frostless)
Dimensions	208 x 251.1 x 136.1 mm
Weight	4 Kg

Datasheet

Product Attributes

Catalogue No

GAHD18IRPTZ

Brand

Genie CCTV

Warranty

1 Year

Lens supplied

4.7-84.6mm

IR Illumination

60 Meters

Rating

IP66

Resolution

1920 x 1080P 2MP

CCD Type

1/3" Sony IMX CMOS
