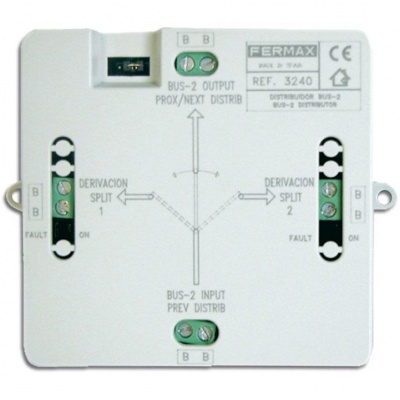

Fermax 3240 2/W BUS2 Distributor

Fermax 3240 2/W BUS2 Distributor

BUS 2 system: simplified installation system, minimum wiring and powerful features, guaranteeing maximum audio/video signal quality at all points of the installation. Maximum immunity to outside interference.Lets you manage buildings of up to 199 homes and 2 entrance accesses.Maximum distance from first access to last home: 250 m.BUS2 AMPLIFIER comes complete with built-in voice synthesizer. When the door release is activated a message is heard: “Door open, please close after entering”.TV camera included in BUS2 video entry panels is COLOUR as standard issue.Up to 2 terminals (2 telephones, 2 monitors or 1 telephone + 1 monitor) can be installed in each home.The home terminals require simple programming, done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor). Communication is private.Wiring: Audio/Video: 2-wire bus without polarity. We recommend CAT2 twisted pair cable for maximum distances and homes capacity.Maximum distance from first access to last home: 250 m.

Device channels the bus from the panel to the active monitor/telephone, maintaining the power supply and data signal on all monitors/telephones at all times.

The distributor opens the way towards the active monitor/telephone and closes off audio and video signals to the rest of the branches.

Each distributor output admits only:

• 2 Monitors
• or 1 Monitor and 1 Telephone
• or 3 Telephones.

Available in 2 and 4 outputs.

Small size allows installation in electrical cabinets. Can be screwed/bolted directly onto the wall.
