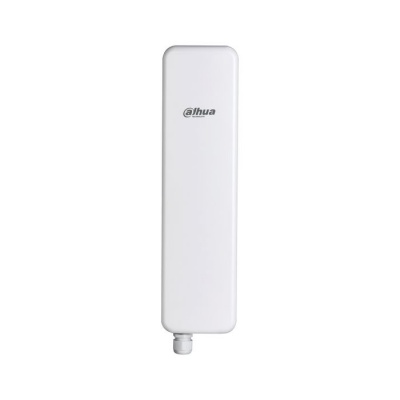

Dahua PFWB5-90AC 5GHz AC867 18dBi Outdoor Base station

Model

DH-PFWB5-90ac

Wireless

WLAN Standard

IEEE 802.11 a/n/ac

Radio Mode

MIMO 2x2

Radio Frequency Band

5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Transmit Power

Up to 30 dBm (country dependent)

Receive Sensitivity

Varying between -95 and -75 dBm depending on modulation

Channel Size

5,10,20,40, 80 MHz

Modulation Schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data Rates

802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Error Correction

FEC, LDPC

Duplexing Scheme

Time division duplex

Transmission Distance

0-5km (recommended), max≥7km

Antenna

Type

Integrated directional panel antenna

Gain

18dBi

Wired

Interface

10/100/1000 Base-T, RJ45

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA), station (WDS, TDMA ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router iPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment

Physical

Dimensions

383mm (length)× 100mm (width )× 98mm (height )

Weight

520 g

Mounting

Pole mounting bracket included

Power

Power Supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

10W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP, Syslog, Web UI, DWMP

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 - 5.9 GHz

Gain

18 dBi

Polarization

Dual linear

Cross-pol Isolation

24 dBi

VSWR

<1.7

Azimuth Beam Width (H pol)

90°

Azimuth Beam Width (V pol)

90°

Elevation Beam Width

20°
