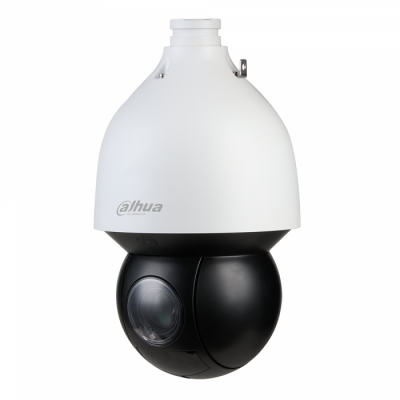

Dahua SD5A225GB-HNR 2MP 25x Starlight IR WizSense Network PTZ Camera

Dahua SD5A225GB-HNR 2MP 25x Starlight IR WizSense Network PTZ Camera
Catalogue No:
SD5A225GB-HNR
£339.93
(Exc. 20% VAT)
(£407.92 Inc. VAT)
–
+
Dahua PFA140 Junction & power box for SD59, SD6A & SD6C

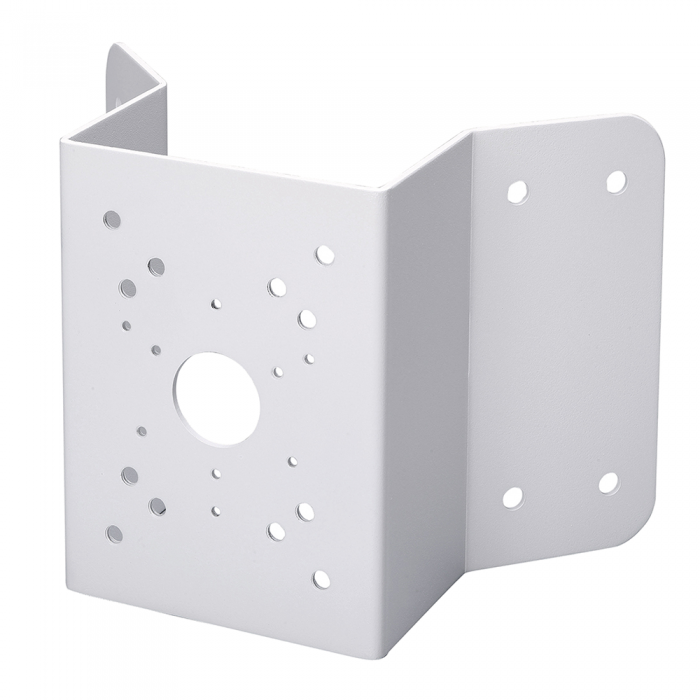

Dahua DH-PFA151 Corner Mount Bracket
Dahua PFA150 Pole Mount Bracket
Dahua PFB300C Ceiling Bracket
Dahua PFA120 Junction Box

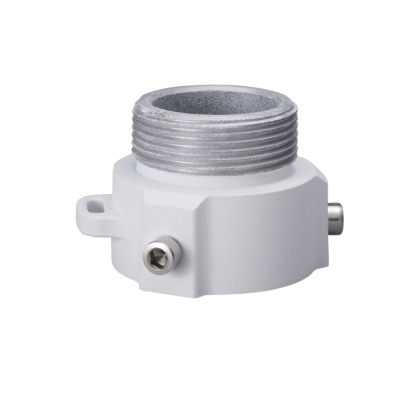

Dahua PFA111 Hanging mount adaptor collar for SD6 speed domes
Dahua
Information

Dahua SD5A225GB-HNR 2MP 25x Starlight IR WizSense Network PTZ Camera

Dahua PTZ WizSence network camera adopts advanced CNN deep learning algorithms to support Perimeter Protection with high accuracy. This camera possess wide monitor range, PFA algorithm that can always present a clear, focused image while zooming. The camera has very excellent low light performance due to adopting the latest starlight technology. The camera is equipped with smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.

Key features

  • 1/2.8" 2Megapixel STARVIS™ CMOS.
  • Powerful 25x optical zoom.
  • Max. 25/30 fps@2M.
  • IR distance up to 150 m.
  • Auto Tracking 3.0.
  • Face Detection.
  • SMD 4.0.
  • Quick Pick.
  • PoE+.
  • IP67, IK10

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides  intelligent, simple and inclusive products and solutions.

Specifications
Camera
Image Sensor 1/2.8" CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
Illumination Distance 150 m (492.13 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; Smart IR
Illuminator Number 4 (IR)
Lens
Focal Length 4.8 mm–120 mm
Max. Aperture F1.6–F3.5
Field of View H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
Optical Zoom 25×
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control Auto; manual
DORI Distance Detect Observe Recognize Identify
1,614 m (5,292 ft) 646 m (2,119 ft) 323 m (1,060 ft) 161 m
(528 ft)
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
Manual Control Speed Pan: 0.1°/s–300°/s
Tilt: 0.1°/s–200°/s
Preset Speed Pan: 400°/s; Tilt: 300°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset; Pattern; Tour; Scan
PTZ Protocol DH-SD
Pelco-P/D (auto recognition)
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Detection Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Auto Tracking Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.
SMD Yes
Video
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)
Streaming Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)
Video Frame Rate Main stream: 1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR 120 dB
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view.
S/N Ratio ≥55 dB
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Interoperability ONVIF (Profile S&G&T); CGI
Streaming Method Unicast; Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB); NAS
Browser IE 7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari
Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS
Mobile Client iOS; Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Alarm I/O 02-Jan
Audio I/O 01-Jan
Two-way Audio Yes
Alarm Linkage Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 24 VDC, 2.5 A (± 25%)
PoE +(802.3at)
Power Consumption Basic: 13 W
Max.: 22 W (illuminator + PTZ working)
Environment
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity ≤95%
Protection IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 332 mm × Φ190 mm (13.07" × Φ7.48")
Net Weight 4.7 kg (10.36 lb)
Gross Weight 8 kg (17.64 lb)
Datasheet
Product Attributes
Catalogue No
SD5A225GB-HNR
Brand
Dahua
Warranty
3 Years
Lens supplied
25X Zoom
IR Illumination
150m
Rating
IP67, IK10
Resolution
2MP 25/30fps
CCD Type
1/1.8" 4Megapixel CMOS
