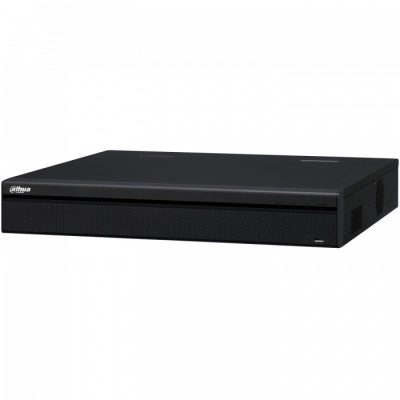

Dahua DHI-NVR5416-EI 16CH 4K NVR, 4xSATA 2xLAN 384 Mbps Incoming Bandwidth

Dahua DHI-NVR5416-EI 16CH 4K NVR, 4xSATA 2xLAN 384 Mbps Incoming Bandwidth
Catalogue No:
DHI-NVR5416-EI
£400.08
(Exc. 20% VAT)
(£480.10 Inc. VAT)
–
+
10Tb Seagate Skyhawk Surveillance drive
8Tb Seagate Skyhawk Surveillance drive
6Tb Seagate Skyhawk Surveillance drive
4Tb Seagate Skyhawk Surveillance drive
2Tb Seagate Skyhawk Surveillance drive
1Tb Seagate Skyhawk Surveillance drive
Dahua
Information

Dahua DHI-NVR5416-EI 16CH 4K NVR, 4xSATA 2xLAN 384 Mbps Incoming Bandwidth

16 Channels 1.5U 4HDD WizSense Network Video Recorder

Key Features

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • 32-channel 1080p self-adaptive decoding capability.
  • Max. 384 Mbps incoming/recording/outgoing bandwidth.
  • AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
  • AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
  • Security baseline 2.3.
Specifications
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AI
AI by Recorder Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
AcuPick AI by Camera + Recorder Max. 16-channel, 1 combined event per channel/s
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) 16 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) 16 channels
Face Recognition
Face Database Capacity Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels) 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) 16 channels
SMD Plus
SMD Plus by Recorder 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 16 channels
Video Metadata
Metadata Performance of AI by Camera (Number of Channels) 8 channels
Human Attributes Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
Motor Vehicle Attributes License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
Non-motor Vehicle Attributes Vehicle model, vehicle color, number of persons, helmet.
Vehicle License Plate Comparison
ANPR by Camera (Number of Channels) 8 channels
License Plate Database Capacity 1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
Audio and Video
Access Channel 16
Network Bandwidth AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Resolution 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Decoding Capability AI disabled:
2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;
8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;
16-channel 4 MP@30 fps
AI enabled:
1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps
Video Output 2 VGA, 2 HDMI
VGA:1920 × 1080, 1280 × 1024, 1280 × 720
HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2
Multi-screen Display Main screen: 1/4/8/9/16
Sub screen: 1/4/8/9/16
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome;IE;Safari;Edge;Firefox
Network Mode Multi-address mode, load balance, fault tolerance and other network port binding modes
Recording Playback
Multi-channel Playback Up to 16 channels
Record Mode General, motion detection; intelligent; alarm; POS
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group YES
Alarm
General Alarm Motion detection; privacy masking; local alarm
Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Intelligent Alarm Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Alarm Linkage Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Port
Audio Input 1-channel RCA
Audio Output 2-channel RCA
Alarm Input 16 channels
Alarm Output 6 channels (1-channel 12 V 1 A output)
HDD Interface 4 SATA ports, each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
eSATA 1
RS-232 1
RS-485 1 (half-duplex serial communication)
USB 3(1 front USB 2.0 port, 2 rear USB 3.0 ports)
HDMI 2
VGA 2
Network Port 2 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply 100–240 VAC, 50-60 Hz
Power Consumption Total output of NVR is ≤ 13 W (without HDD)
Net Weight 4.74 kg (10.45 lb)
Gross Weight 6.11 kg (13.47 lb)
Product Dimensions 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H)
Packaging Dimensions 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014
CE-LVD: EN 62368-1: 2014
