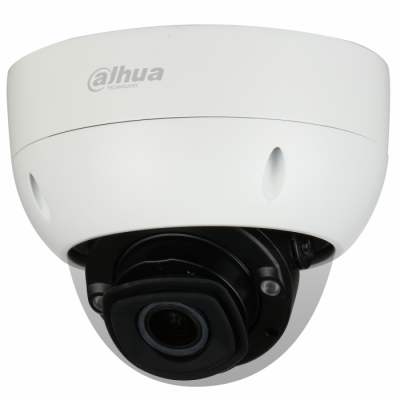

Dahua IPC-HDBW5842H-ZHE 8MP Pro AI IR IP Dome Network Camera

Catalogue No:

IPC-HDBW5842H-ZHE

£443.41

(Exc. 20% VAT)

(£532.09 Inc. VAT)

Special Order Item

–

Information

Dahua IPC-HDBW5842H-ZHE 8MP Pro AI IR IP Dome Network Camera

With starlight solution and deep learning algorithm, Dahua Pro AI series network camera has various intelligent functions, including face detection, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10.

Key Features

8MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
Max outputs 8MP (3840×2160) @ 25 fps/30 fps
H.264&H.265 coding, high compression ration
Wide dynamic, day/night, 3D noise reduction, AWB, HLC, BLC
ROI, SVC, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
With deep learning algorithm, it supports people counting, face detection, perimeter protection.
Alarm: 3 in, 2 out, audio: in, out, RS-485, BNC, 256 G SD card, built-in ports, without cables
24V AC/PoE/12V DC power support
Three streams for two-channel HD video · IP67, IK10 protection grade

Face Detection

Dahua Face Detection technology can detect the face in the image.
With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements.

Smart Codec

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

ePoE

Dahua ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more
flexible surveillance system design, improves reliability and saves construction and wiring cost.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Specifications

Camera

Image Sensor

1/1.8”8Megapixel progressive CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 G

RAM

2 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30IRE)

0.0005 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

80 m (262.5 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

Module

Focal Length

8 mm–32 mm

Max. Aperture

F1.6 ( Constant )

Field of View

Horizontal: 40° (W)–15° (T)

Vertical: 23° (W)–9° (T)

Diagonal: 45° (W)–17° (T)

Iris Type

Auto

Close Focus Distance

W: 2.5 m (8.20 ft)
T: 6 m (19.68 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

218.0 m (715.2 ft)

87.0 m

(285.4 ft)

43.0 m

(141.1 ft)

21.0 m

(68.9 ft)

580.0 m (1902.9 ft)

232.0 m (761.2 ft)

116.0 m (380.6 ft)

58.0 m

(190.3 ft)

Smart Event

IVS

Abandoned object; moving object

Professional, intelligent

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.

Face Detection

Face detection, track, priority, snapshot;
Upload Optimized snapshot picture;
Face enhancement, face exposure, face attribute extract,6 attributes and 8 expressions: Gender, age, glasses,expressions (anger, sadness, disgust, fear, surprise,calm, happiness and confusion), Mouth mask, beard;
Face matting setting: face, single inch photo;
Three snapshot methods: real-time snapshot, priority snapshot, quality priority;
Face angle filter Priority time setting;
Support Duration Optimal,Non-living Filtering;

People Counting

Support tripwire number counting; people counting in

area, and displaying and outputting yearly/monthly/daily reports.

Support queue management, and displaying and

outputting yearly/monthly/daily reports.

Support 4 tripwire rule configuration, people counting in

4 areas, and 4 queue managements.

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B;MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/H.264+

Video Frame Rate

Main Stream: 3840 × 2160 (1-25/30 fps)
Sub stream: 704 × 576 (1-25 fps)/704 × 480 (1–30 fps)
Third stream: 1920 × 1080 (1-25/30 fps)

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048/3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); CIF (352 × 288/352 × 240); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps
H.265: 12 kbps–16384 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people No. exception detectiong exception detection; safety exception,queue management

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P; RTMP

User/Host

20 (Total bandwidth: 160 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE9 and earlier
Chrome: Chrome 42 and earlier
Firefox: Firefox 48.0.2 and earlier

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

CE-LVD: EN62368-1,EN60950-22 (optional)
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional)

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

1 channel (3-pin terminal with 2.54mm clearance; with audio cable)

Audio Output

1 channel (3-pin terminal with 2.54mm clearance; with audio cable)

Alarm Input

3 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V DC

Power

Power Supply

12V DC/24V AC/PoE+ (802.3at); ePoE

Power Consumption

Basic power consumption: 5.4W (12V DC); 5W(24V AC); 4.9W (PoE)

Max. power consumption (Max. stream + intelligent function + IR LED + focus): 16.7W (12V DC);15.7W(24V AC); 15.6W (PoE)

Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to 140°F)/Less than 95% RH

Strorage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional)

Structure

Casing

Metal + plastic

Dimensions

129.1 mm × Φ157.9 mm (5.08" × Φ6.22")

Net Weight

1500 g (3.31 lb)

Gross Weight

1600 g (3.53 lb)

Datasheet

Product Attributes

Catalogue No

IPC-HDBW5842H-ZHE

Brand

Dahua
