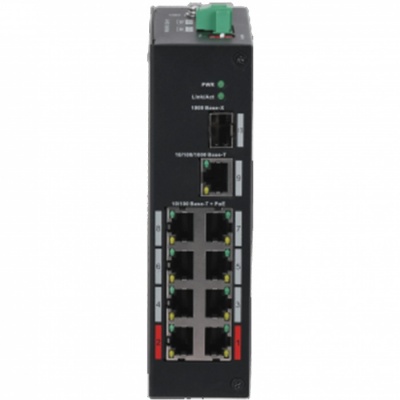

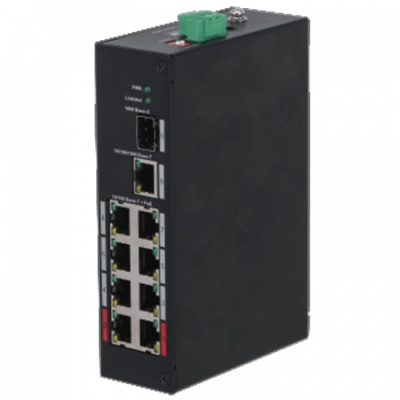

Dahua PFS3110-8ET-96 8 Port 10/100 Un-Managed PoE Ethernet Switch, 1 x Hi-PoE, 96W Power, DC 48~57V

Dahua PFS3110-8ET-96 8 Port 10/100 Un-Managed PoE Ethernet Switch, 1 x Hi-PoE, 96W Power, DC 48~57V
Dahua PFS3110-8ET-96 8 Port 10/100 Un-Managed PoE Ethernet Switch, 1 x Hi-PoE, 96W Power, DC 48~57V
Dahua PFS3110-8ET-96 8 Port 10/100 Un-Managed PoE Ethernet Switch, 1 x Hi-PoE, 96W Power, DC 48~57V
Catalogue No:
PFS3110-8ET-96
£92.52
(Exc. 20% VAT)
(£111.02 Inc. VAT)
+
Dahua
Information

Dahua PFS3110-8ET-96 8 Port 10/100 Un-Managed PoE Ethernet Switch, 1 x Hi-PoE, 96W Power, DC 48~57V

10-Port Unmanaged Hardened Switch with 8 Port PoE

Key Features

  • * The parameters and datasheets below can only be applied to V2.0 (version 2.0)
  • Intelligent PoE
  • BT 90W
  • 8-pin assignment PoE power supply
  • Long distance PoE
  • PoE watchdog
  • Wide working temperature
Specifications

Hardware

Data Transmission Port

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)

Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)

Port 10: 1 × SFP 1000 Mbps (uplink)

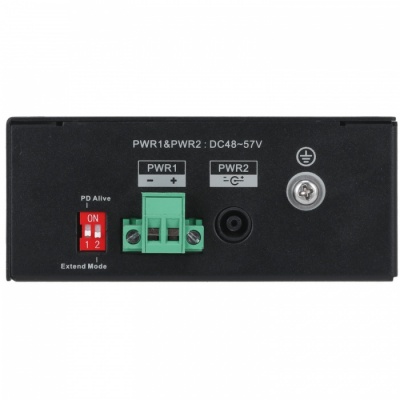

Power Supply

48 V - 57 V DC

Operaing Temperature

–10 °C to +55 °C (+14°F to +131°F)

Operating Humidity

5% – 95% (RH)

Storage Temperature

–20 °C to +70 °C (–4°F to +158°F)

Storage Humidity

5% – 95% (RH)

Power Consumption

Idling: 3 W

Full load: 96 W

Performance

Capacity

3.6 Gbps

Packet Forwarding Rate

2.678 Mbps

Packet Buffer Memory

1 Mbit

MAC Table Size

2K

Communication Standard

IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE

PoE Standard

IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt

PoE Power

96W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m long distance PoE transmission

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Thunder-proof

Common mode: 4kV
Differential mode: 2kV

Net Weight

0.47 kg (1.03 lb)

Gross Weight

1.32 kg (2.91 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10

Datasheet
Product Attributes
Catalogue No
PFS3110-8ET-96
Brand
Warranty
3 Years
