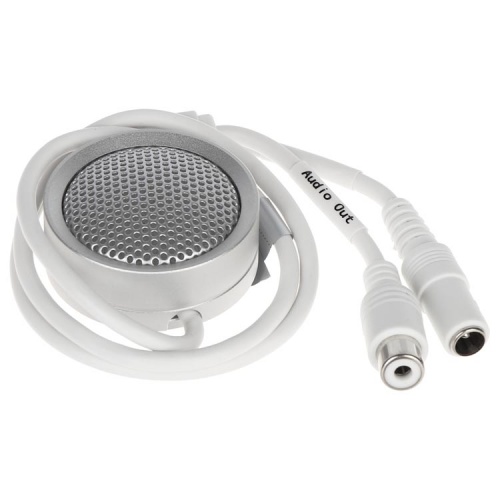

Dahua HAP120 Hi-Fidelity Pickup Omni-directional Microphone

Catalogue No:

HAP120

£23.19

(Exc. 20% VAT)

(£27.83 Inc. VAT)

Delivery Information

–

Information

Dahua HAP120 Hi-Fidelity Pickup Omni-directional Microphone

Hi-fidelity Pickup >Use high sensitivity, all directional microphone head and omnidirectional microphone, clear and natural sound; >Lightning protection, power polarity transposition protection and electrostatic protection.

Key Features

Use high sensitivity, all directional microphone head and omnidirectional microphone, clear and natural sound;
Lightning protection, power polarity transposition protection and electrostatic protection.

Specifications

Model	DH-HAP120
General
Scope	10~70 m2
Sensitivity	-34±3dB
Frequency response	80Hz～16kHz
Directional characteristic	Omni-directional
SNR (re 94dBSPL=1Pa@1KHz)	58dB
Dynamic range	74dB
Max. sustainable sound pressure	110dBSPL (1KHz, THD 1%)
Output impedance	600Ω(non-equilibrium)
Output signal amplitude	2.5Vpp/88dBSPL
Microphone	Plated film capacitor microphone head
Working voltage	DC 12V
Working current	40mA
Working temperature	-30ºC~+70ºC(-22℉~+158℉)
Material	Aluminum
Color	Silver
Dimension	Φ40mm×20mm (Φ1.57”×0.79”)
Weight	48g( 0.11lb)
Certification	CE/FCC

Datasheet

Product Attributes

Catalogue No

HAP120

Brand

Dahua

Warranty

3 Years
