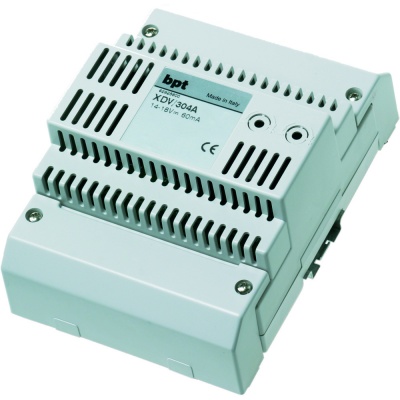

BPT XDV/304A Video Distributor 4 outputs sys300

Catalogue No:
XDV-304A
£132.33
£159.00
Saving Of
£26.67 (17%)
(Exc. 20% VAT)
(£158.80 Inc. VAT)
+
CAME BPT
Information

BPT XDV/304A Video Distributor 4 outputs sys300

Unit for distributing the modulated video signal over 4 lines, for X2 system. Features 5 line impedance termination jumpers.

Key Features

  • 4-output video signal distributor, amplified.
  • Plastic housing for installation in electrical control panels (EN50022).
  • Dimensions 4 low-profile DIN modules.
  • Protection rating IP30.
  • Complete with 8 input terminals for 4 twisted pairs from the receivers and 4 terminals for IN/OUT connection from the riser.
  • Line impedance closure switch for each output.
Specifications



  • Supply voltage: 14-18 V DC.
  • Current demand: max. 60 mA.
  • Pass-through video output loss: 0.6 dB input/output.
  • Video output loss: max. 1 dB input/output.
  • Maximum number of XDV/304 and XDV/304A distributors: 30.
  • Working temperature range: 0 degrees C to +35 degrees C.
  • Dimensions: low-profile 6-unit module for installation on DIN rail
Datasheet
Product Attributes
Catalogue No
XDV-304A
Brand
