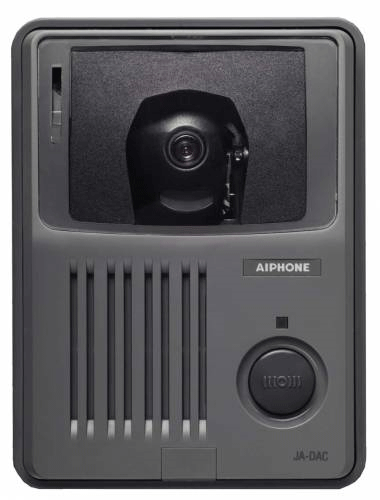

AIphone JA-DAC Colour Video camera with Pan Tilt

Catalogue No:
JA-DAC
£481.27
£838.80
Saving Of
£357.53 (43%)
(Exc. 20% VAT)
(£577.52 Inc. VAT)
No stock
+
Aiphone
Information

AIphone JA-DAC Colour Video camera with Pan Tilt

PanTilt Color Video Door Station - The JA-DAC is a surface mount door station used with the JA open voice, color video entry series. The unit mounts to a 1-gang box and is made from sturdy ABS plastic with a clear Lexan lens cover. The JA-DAC features a color PanTilt CCD camera, speaker and mic for communication, illuminated call button and white illumination LED for low light conditions.

Key Features

  • Two color camera door stations, three inside moniter  stations
  • Motion-sensor camera for monitoring with JDW-C
  • Hands-free communication, voice operated exchange
  • Instant voice call-in with image
  • Press-to-talk operation can override VOX if necessary
  • Built-in video output
  • All Call to all inside stations
  • Visual monitoring with audio
  • Two door release contacts for selective control
  • Built-in picture memory (JA-2MECD only)
  • Transfer of door station call to other inside stations
  • White LED illuminator turns on in low-light conditions
Specifications
Specitication JA-MCD
Power Source 24V DC - Use PS-2420UL
Calling

Chime, image and audio approx. 30 sec.

Communication AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) - to activate, push TALK button for 2 sec. or until talk LED turns on
Video Monitor 4” direct-view TFT color LCD
Scanning Line 525 lines
Image View Area Approx. 2’ horizontal, 3’8”~7’9” vertical  at 4’3” high and at 20” in front of camera
Night Viewing Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
Door Release Contact rating: 12V AC, 350mA Use RY-24L for larger contact rating, one per door
Wiring Door to master: 2-cond., mid cap, solid, non-shielded Master to subs: 4-cond., mid cap, solid, non-shielded
Distance Master to door: 165’(22AWG) 330’(18AWG) Master to farthest sub: 165’(22AWG) 330’(18AWG) Master to IER-2: 245’(22AWG) 490’(18AWG)
Wire Type Master to door: Aiphone #871802 Between masters/subs: Aiphone #871804
Datasheet
Product Attributes
Catalogue No
JA-DAC
