Aiphone AC-10S/U Vandal resistant 100 user backlit

Aiphone AC-10S/U Vandal resistant 100 user backlit
Catalogue No:
AC-10S
£153.29
£170.04
Saving Of
£16.75 (10%)
(Exc. 20% VAT)
(£183.95 Inc. VAT)
Surface

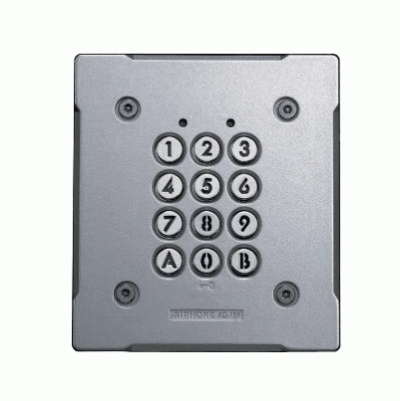

Panel Mount (Chassis only)
–
+
Aiphone
Information

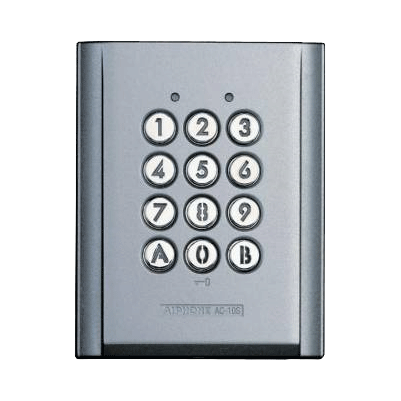

Aiphone AC-10S AC-10U Vandal resistant 100 user backlit keypad

Key Features

  • Sand alone access keypad
  • AC-10S designed to match look of JK-DV and JF-DV
  • 12-digit backlit keypad
  • 2 relay outputs (NO & NC)
  • 100 Pin Code capacity
  • 2 request-to-exit inputs
  • 12 terminal wiring block for easy connections
Specifications
Power source 12～24V AC or 12～24V DC
Current consumption AC: 100mA (max.) DC: 70mA (max.)
Number of relay circuits 2
Relay contact N/O, N/C
Relay contact capacity 24V AC/DC, 3A (resistive load) 1A (inductive load)
User code Up to 100 user codes (Relay 1: 60, Relay 2: 40)
Number of request to exit/entry button 2
Request to exit/entry button・Timer Minimum overload :100mV DC, 0.1mA or above Contact capacity: 3V DC, 0.1A or above
Diameter of cable φ0.65～1.0mm
Ambient temperature -20～+60℃ (-4°F～+140°F)
Mounting Surface wall mount
Housing Front panel: Zinc diecasting
IP IP54
Weight Approx. 600g (1.32 lbs) Mounting bracket included
Unit color Front panel: Solid Silver (metallic gray)
Datasheet
Product Attributes
Catalogue No
AC-10S
Brand
Aiphone
