AIphone LEF Intermixed loudspeaker Intercom selection

AIphone LEF Intermixed loudspeaker Intercom selection
Catalogue No:
LEF-3
£120.19
£131.74
Saving Of
£11.55 (9%)
(Exc. 20% VAT)
(£144.23 Inc. VAT)

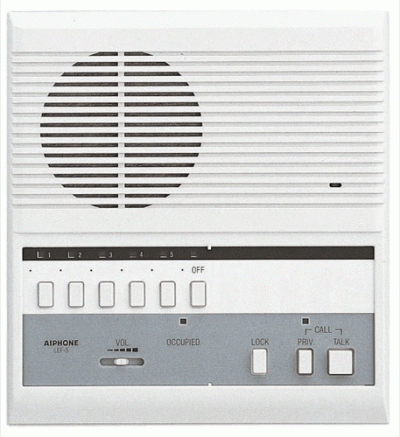

3 Call Master
5 Call Master

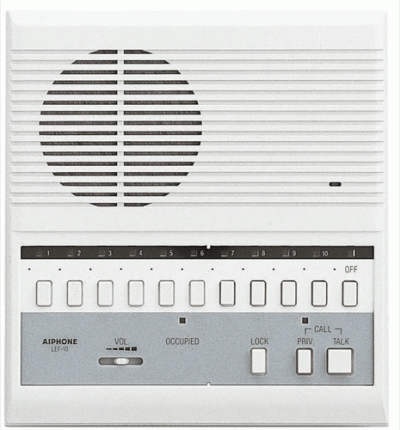

10 Call Master
10 Call Master all call button
All Call Sub Master

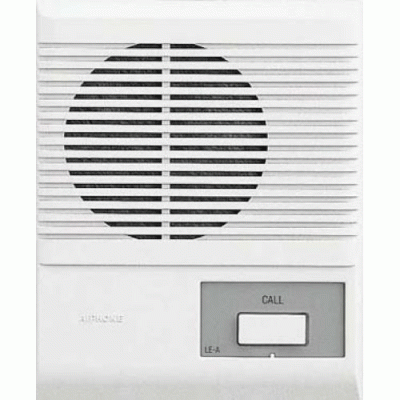

Sub station Desktop/Wall mount
Sub Station 3 call

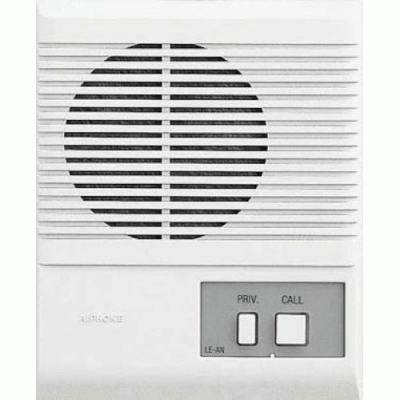

Sub Station Desktop/Wall mount privacy
Sub Station 3 call privacy
LEF-10 Back box
–
+
Aiphone
Information

AIphone LEF Intermixed loudspeaker Intercom selection

NOTE:- The BG10C part required for all station calling on the LEF range is now obsolete

Key Features

  • High-power Intercom 10 watts
  • Desktop type audio sub stations, ceiling speaker or 8 Ω horn speaker
  • Selective all call up to 10 substations (800 mW all call)
  • 10 watts is only available for transmission from the master sttion to the horn speakers

For this functionality, the only way now is IP see part No.s

IX-MV7-HW
IX-MV7-HB
IX-MV7-W
IX-MV7-B

See related products at the bottom of this page

Specifications
Power source 220-240 VAC 50/60 Hz
Consumption 45W 6W standby
Communication Sub calls in with tone & LED, 15 sec. Depress selector and use Talk/Listen switch. All call selectivelt to max. 5 subs. Max. 10W transmit, adjustable. 300 mW receive, adjustable
Wiring 1 twisted pair per sub station non polarized. 3 twiste pair for master to master
Distance AP-M to sub 150M (0.65mm) 230M (0.8mm)
 Dimensions 276 x 253 x 140
Datasheet
Product Attributes
Catalogue No
LEF-3
Brand
Aiphone
